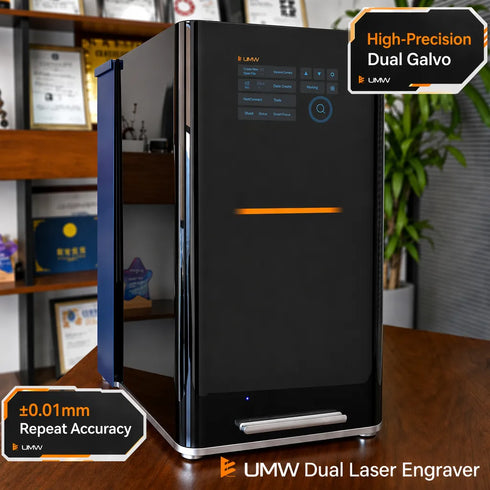

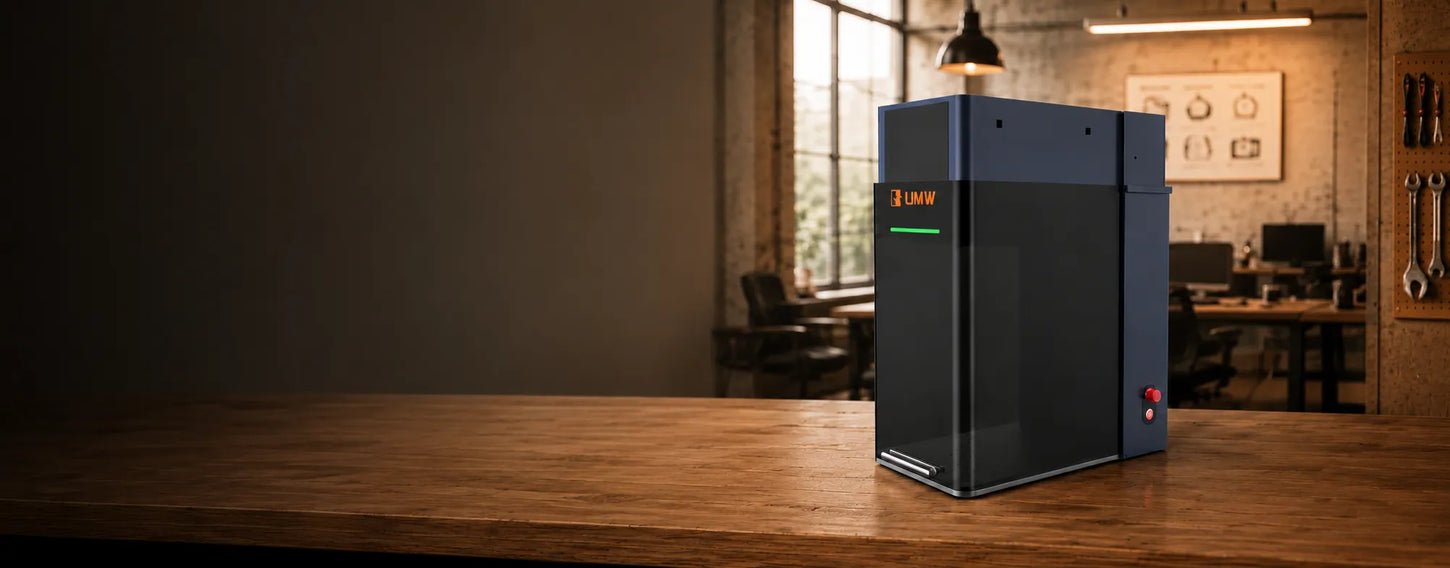

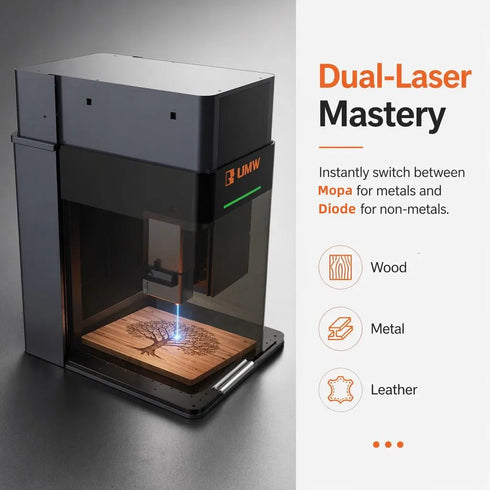

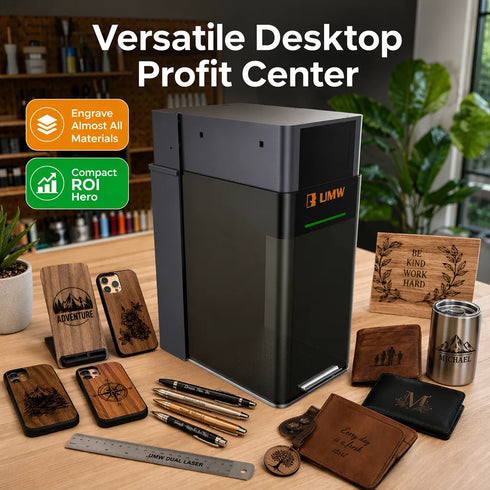

D1 60W MOPA & 40W Diode Dual Laser Marking Machine
60W MOPA Laser + 40W Diode Laser
100+ Consistent Metal Colors
48MP Visual Positioning
Metal Marking, 3D Relief & Thin-Metal Cutting

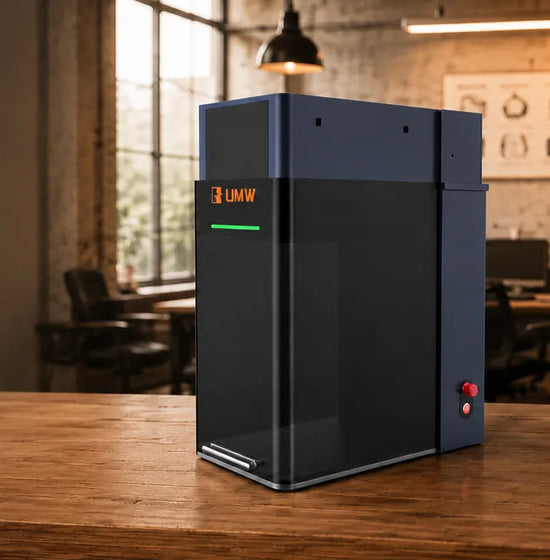

60W MOPA & 40W Diode Dual Laser Marking Machine
D1 Dual Engraver
An enclosed system for marking, engraving, and light cutting of both metals and non-metals.
Why Choose the D1 Dual Engraver?
From colorful metal marking to wood engraving and cutting, the dual laser engraver brings two laser technologies into one compact and enclosed workstation.

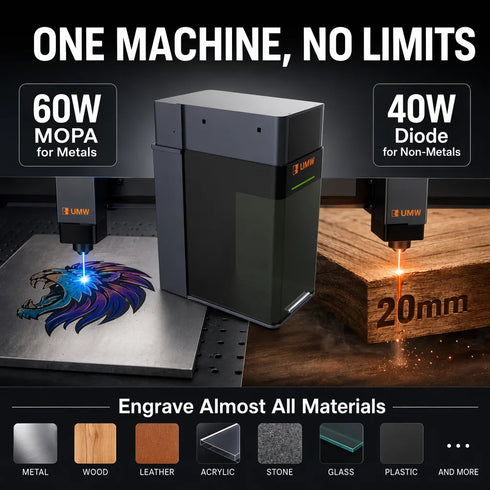

D1 Dual Engraver Two Lasers for Metals and Non-Metal
The 60W MOPA fiber optic red light is used for metal processing, while the 40W diode blue light enables precision processing and cutting of non-metallic materials such as wood, leather, and paper.
Metal Processing
60W MOPA Fiber Laser
● Stainless steel, carbon steel and iron
● Aluminum and anodized aluminum
● Brass, copper and titanium
Non-Metals Material
40W Diode Laser
● Wood, plywood and bamboo
● Leather, fabric and paper
● Stone, slate, glass and ceramics
Advantages of the Dual-Light Combination
| Comparison | MOPA Fiber Laser | Blue Diode Laser | Dual-Laser Advantage |
|---|---|---|---|
| Core Materials | Metals (Steel / Aluminum / Copper / Titanium) | Non-Metals (Plastic / Glass / Wood / Leather) | Covers Both Metals and Non-Metals |
| Marking Depth | Deep Engraving (Up to 0.3 mm+) | Shallow Engraving / Surface Marking | Flexible for Deep or Fine Marking |
| Precision | High Precision (0.002 mm) | High Precision with a Small Laser Spot | Suitable for Fine and Detailed Marking |
| Color Marking | MOPA Models Support Color Marking | Not Supported | Dedicated Capability for Metal Color Marking |
| Heat Effect | Low, with Adjustable Pulse Control | Low, with a Small Focused Spot | Select the Optimal Laser for Each Material |
| Control Options | Touchscreen / Remote Control / Mobile App | Touchscreen / Remote Control / Mobile App | Three Control Methods for Flexible Operation |
| Typical Applications | Hardware Tools / Medical Devices / Jewelry | Electronic Housings / Crafts / Packaging | One Machine for a Wide Range of Applications |

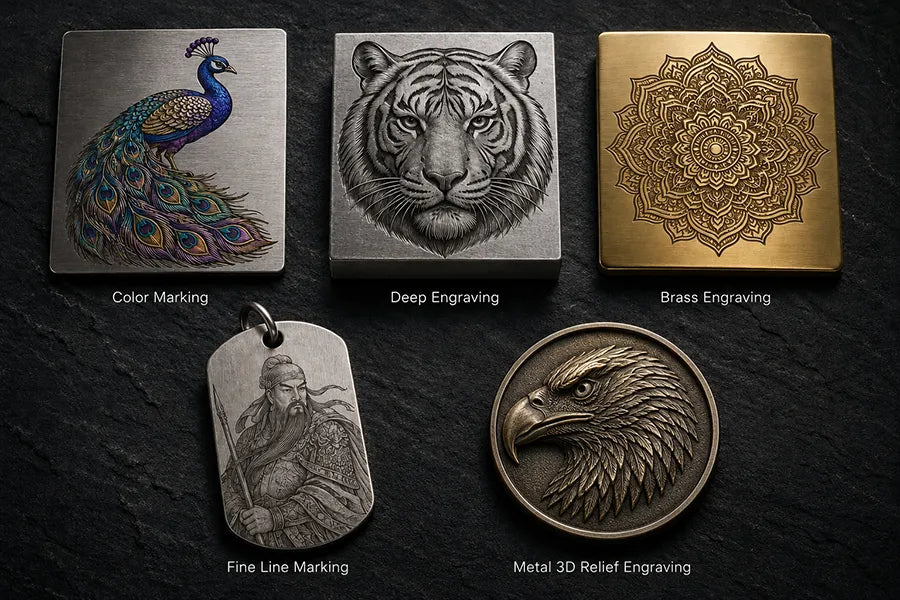

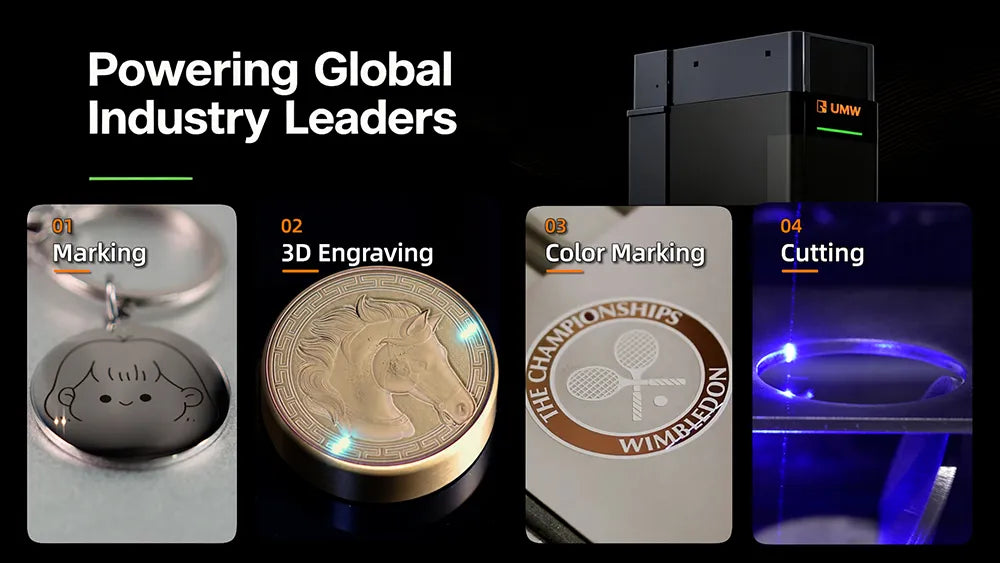

Advanced Metal Processing with D1 Dual Laser Engraver
From deep engraving and vibrant color marking to precision thin metal cutting, the D1 delivers efficient and versatile metal processing.
Deep Engraving & 3D Relief
At the same relief depth, the processing time is nearly three times faster compared to a 20W fiber laser.
Metal Color Engraving
100+ Colors for the surfaces of various metal materials, such as stainless steel and titanium.
Precision Thin Metal Cutting
Capable of cutting materials such as aluminum sheet, stainless steel, and brass up to 2 mm thick.

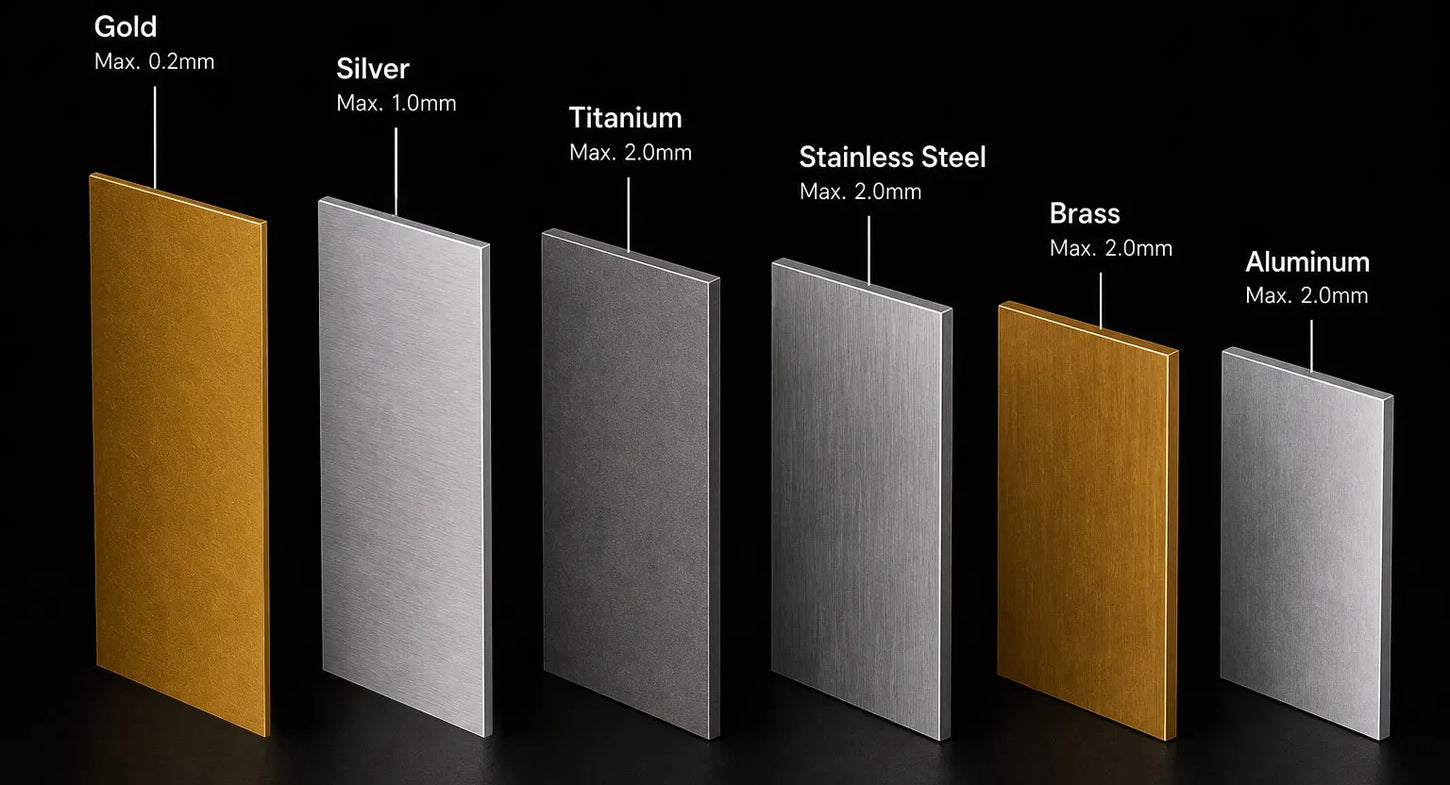

Metal Cutting Capacity by Material
View the maximum cutting thicknesses for various metals using the D1 dual laser engraver.

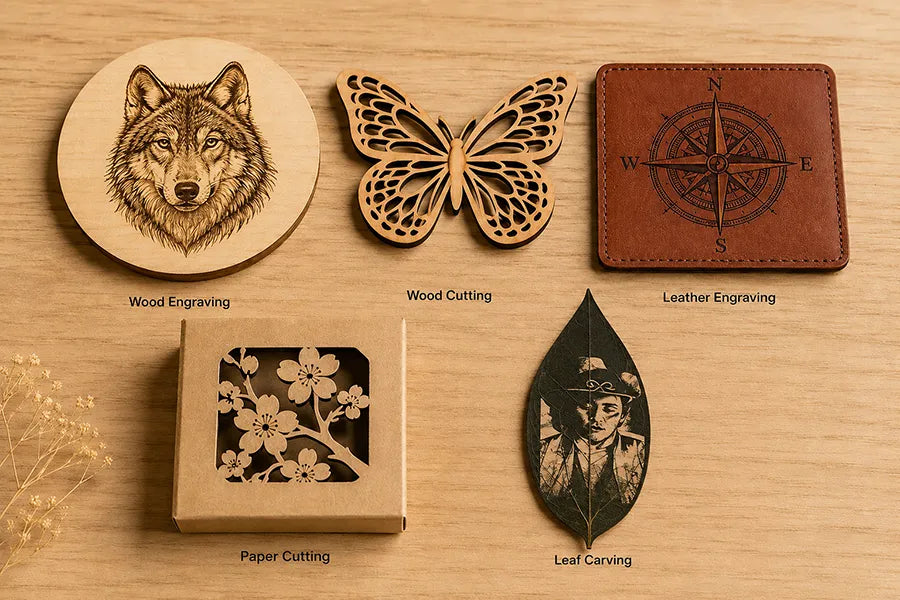

Powerful Non-Metal Engraving and Cutting

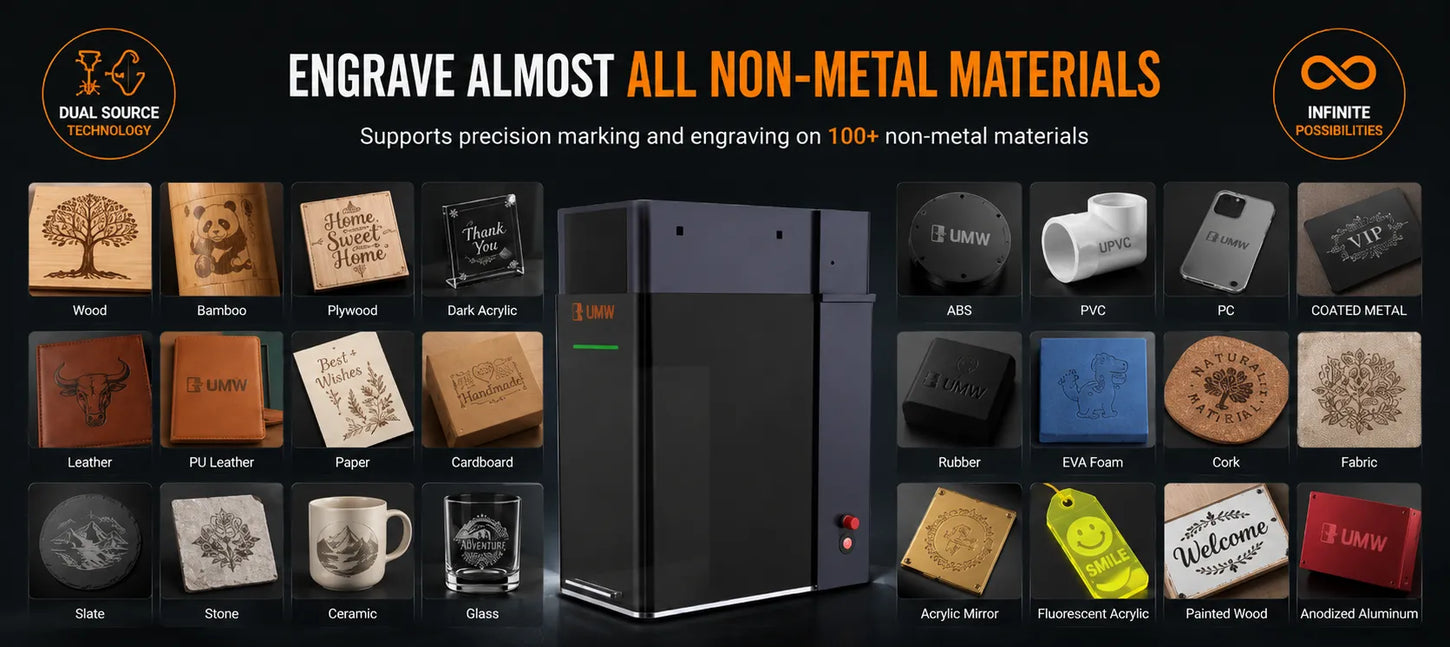

Engrave over 100 non-metal materials and cut thick wood and dark acrylic with the 40W diode laser.
Fine Wood Engraving
Precision engraving on 100+ non-metal materials, including acrylic, wood, stone and leather.

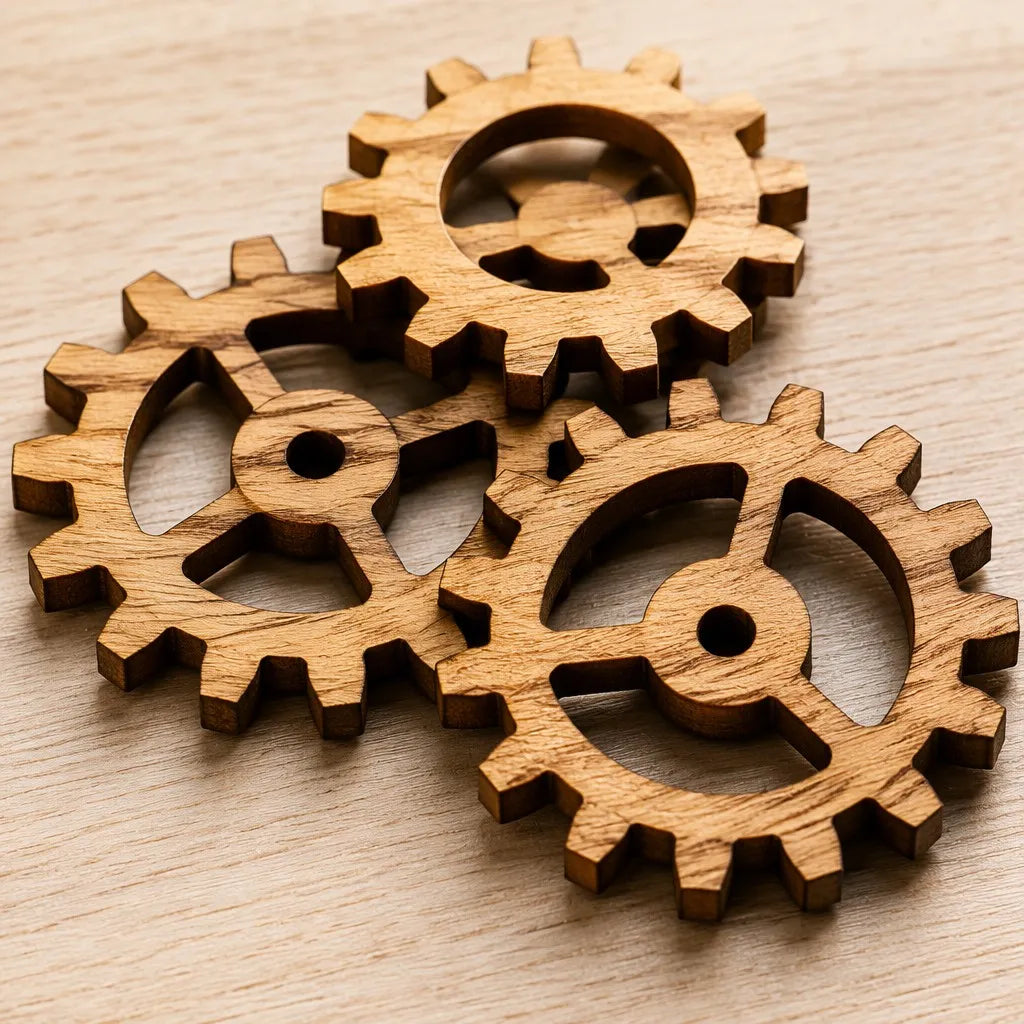

Non-metal Cutting
Capable of cutting 22mm basswood and 20mm dark acrylic in multiple passes.

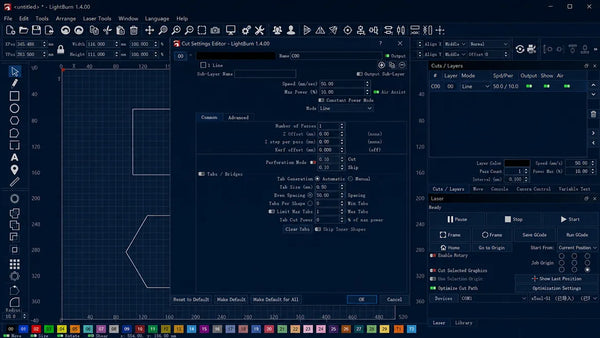

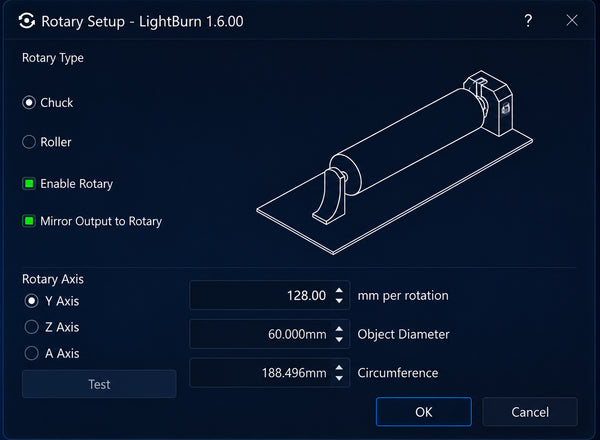

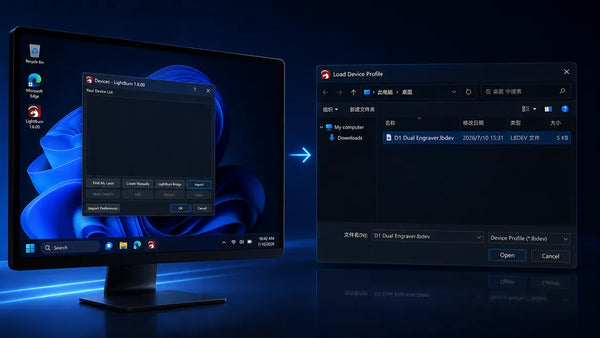

D1 Dual Engraver Intelligent Control with LightBurn
Prepare designs, organize processing layers, adjust laser parameters, and preview jobs through a familiar LightBurn workflow.
D1 Dual Laser Engraver with an Expandable Working Area
Combining dual-laser versatility with high-speed processing, the D1 dual laser engraving machine delivers precise engraving and supports conveyor expansion for larger and longer workpieces.
Processing Speed
D1 laser engravers achieve marking speeds of ten of thousands of units per second, shortening cycle times.
Conveyor Extension
The processing area can be expanded to 250 x 900 mm using a conveyor belt, making it suitable for long products and large layouts.

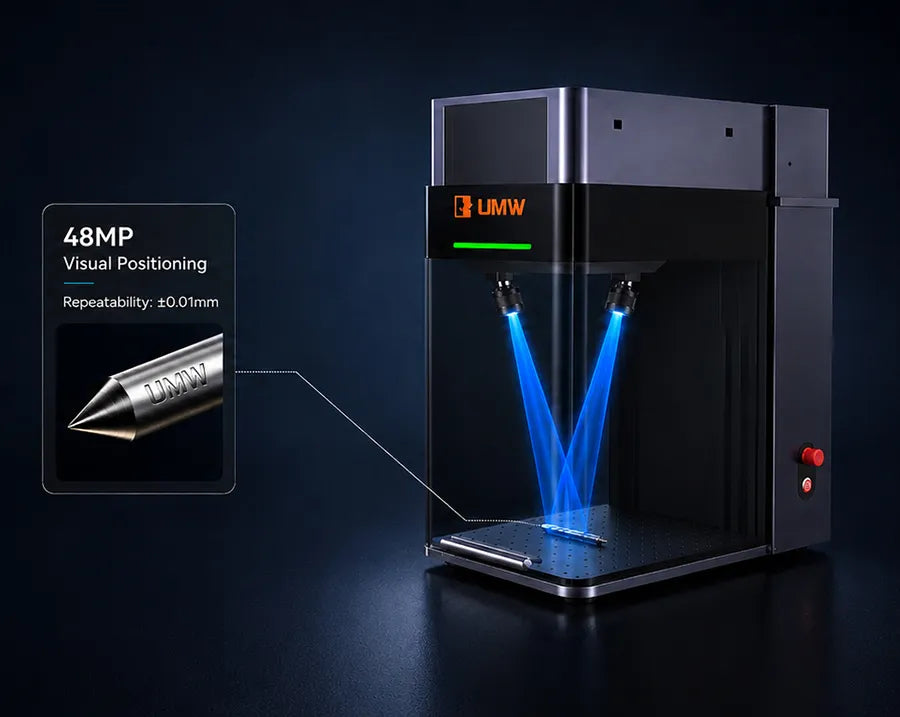

D1 Dual Engraver Overhead 48MP Camera
D1 with 48MP Visual Positioning
Obtain a precise preview of the entire work area, enabling faster and more accurate alignment. ±0.01 mm Repeatability 0.2 mm Minimum Character Width

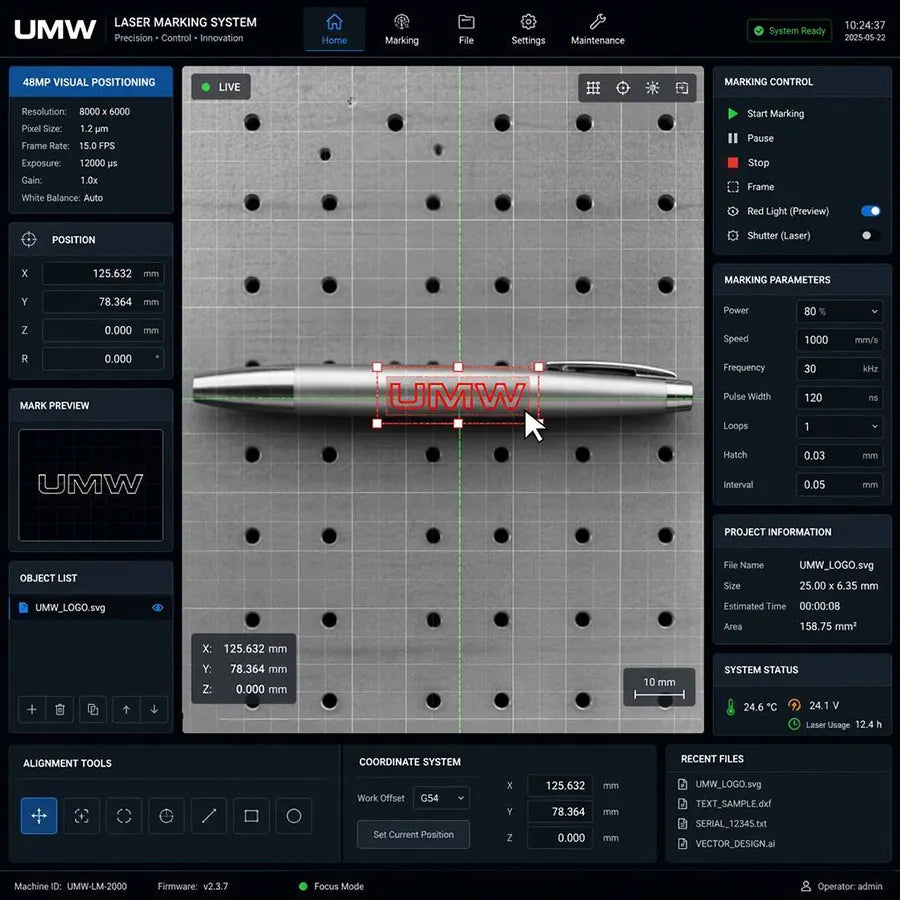

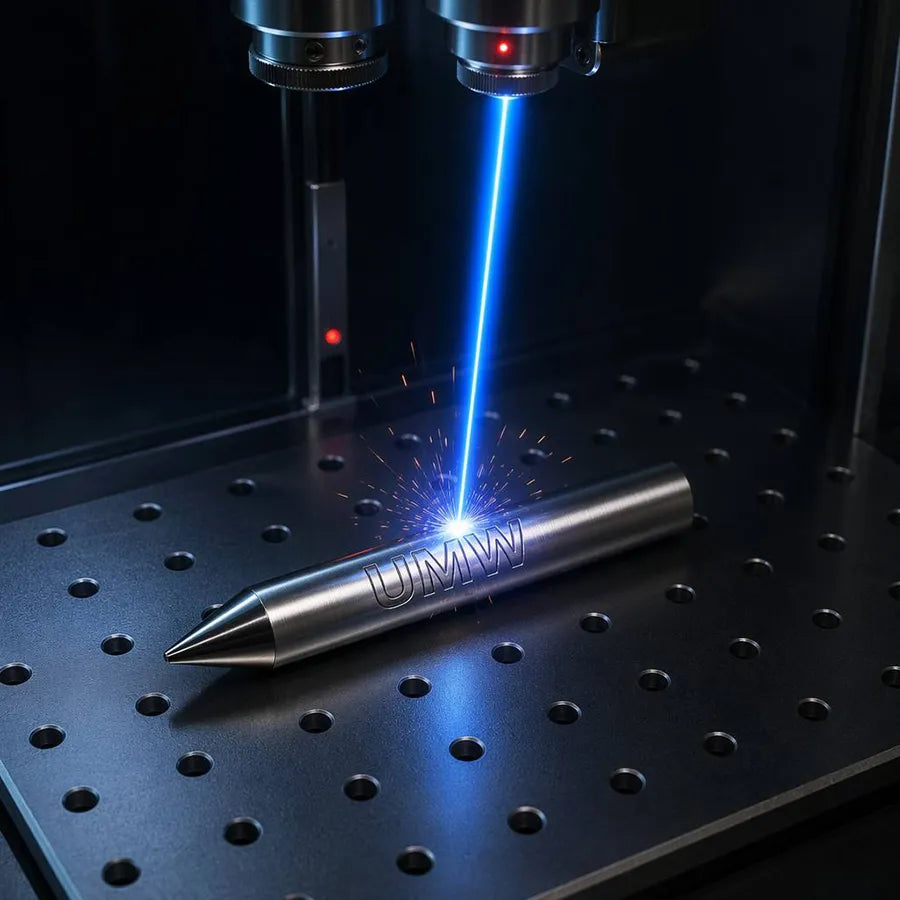

D1 Dual Engraver System Processing Workflow

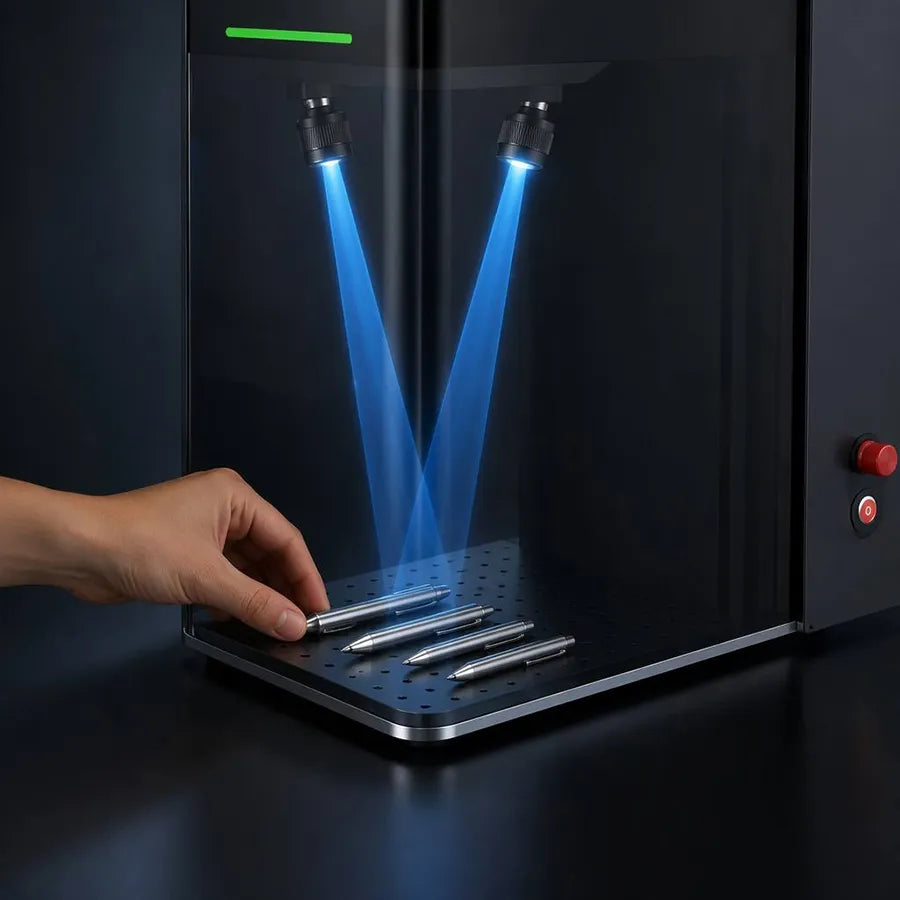

Place the Workpiece
Place the Workpiece
Put one or multiple parts on the worktable without relying on complex fixtures.
Preview and Position
Preview and Position
View the workpiece in the software and drag the artwork directly onto the target area.
Focus and Start
Focus and Start
Detect the workpiece height, adjust the focus and begin marking or engraving.

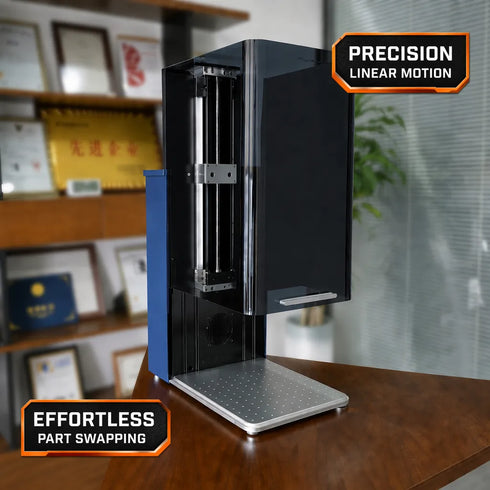

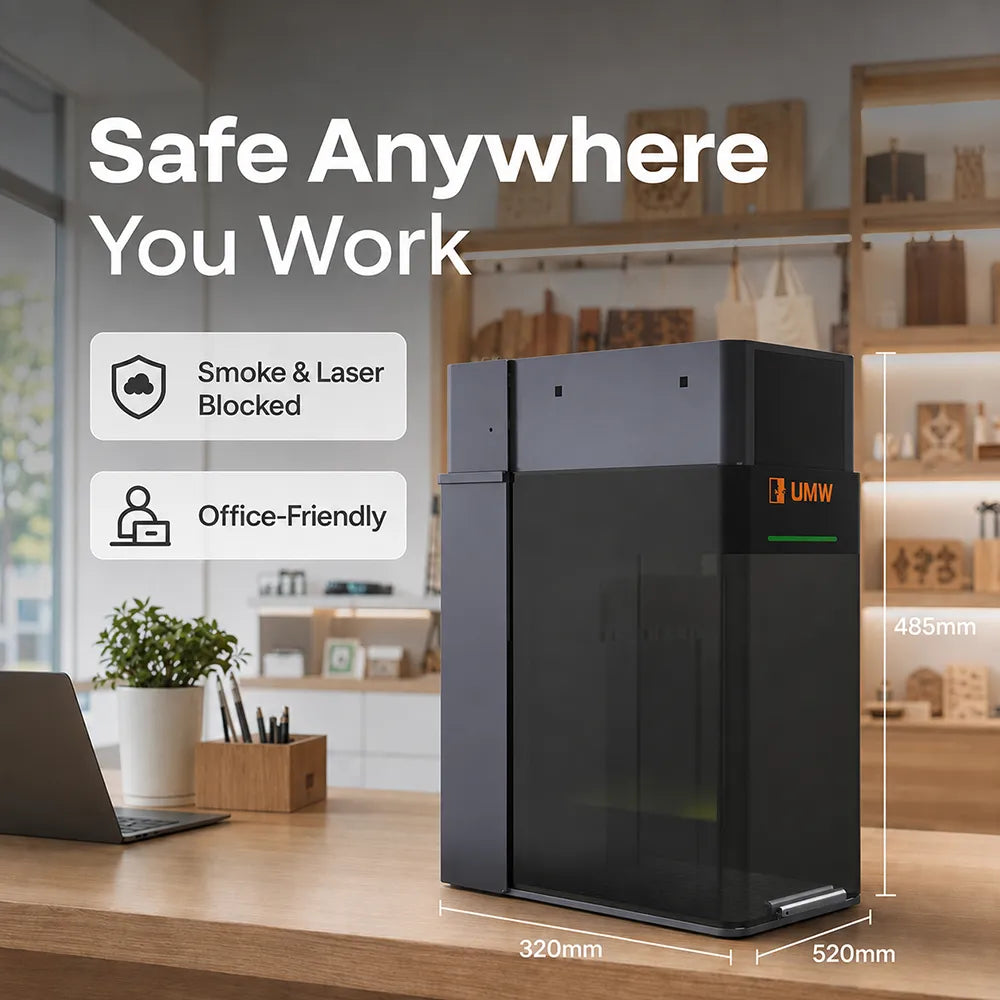

D1 Dual Engraver with Enclosed Design
Enclosed design isolates the laser area for safer operation anywhere.
Optional Accessories for D1 Dual Laser Engravers
Expand your processing capabilities for cylindrical objects, long materials, and batch production.

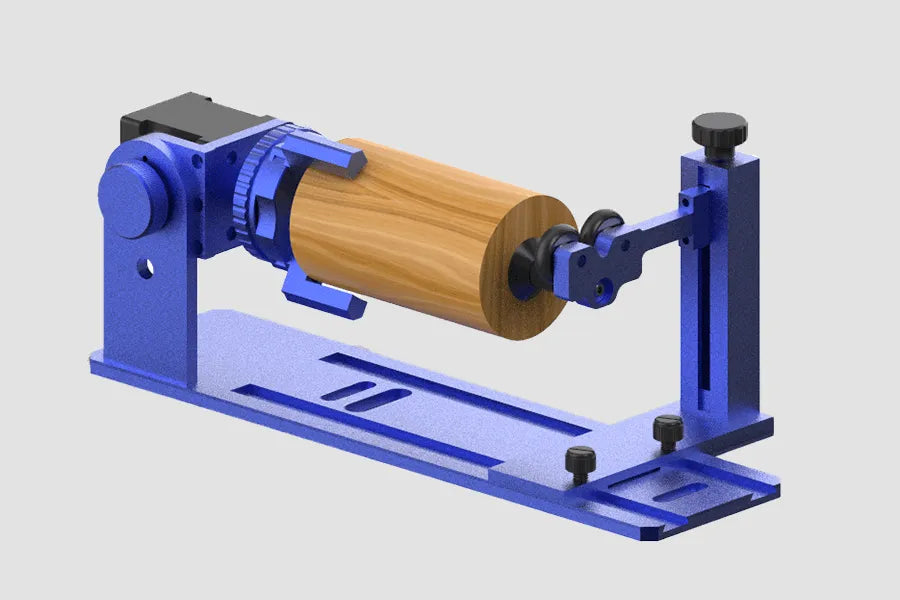

Rotary Axis Attachment
Supports roller, chuck, sphere, and ring engraving, with a maximum processing diameter of
198 mm.

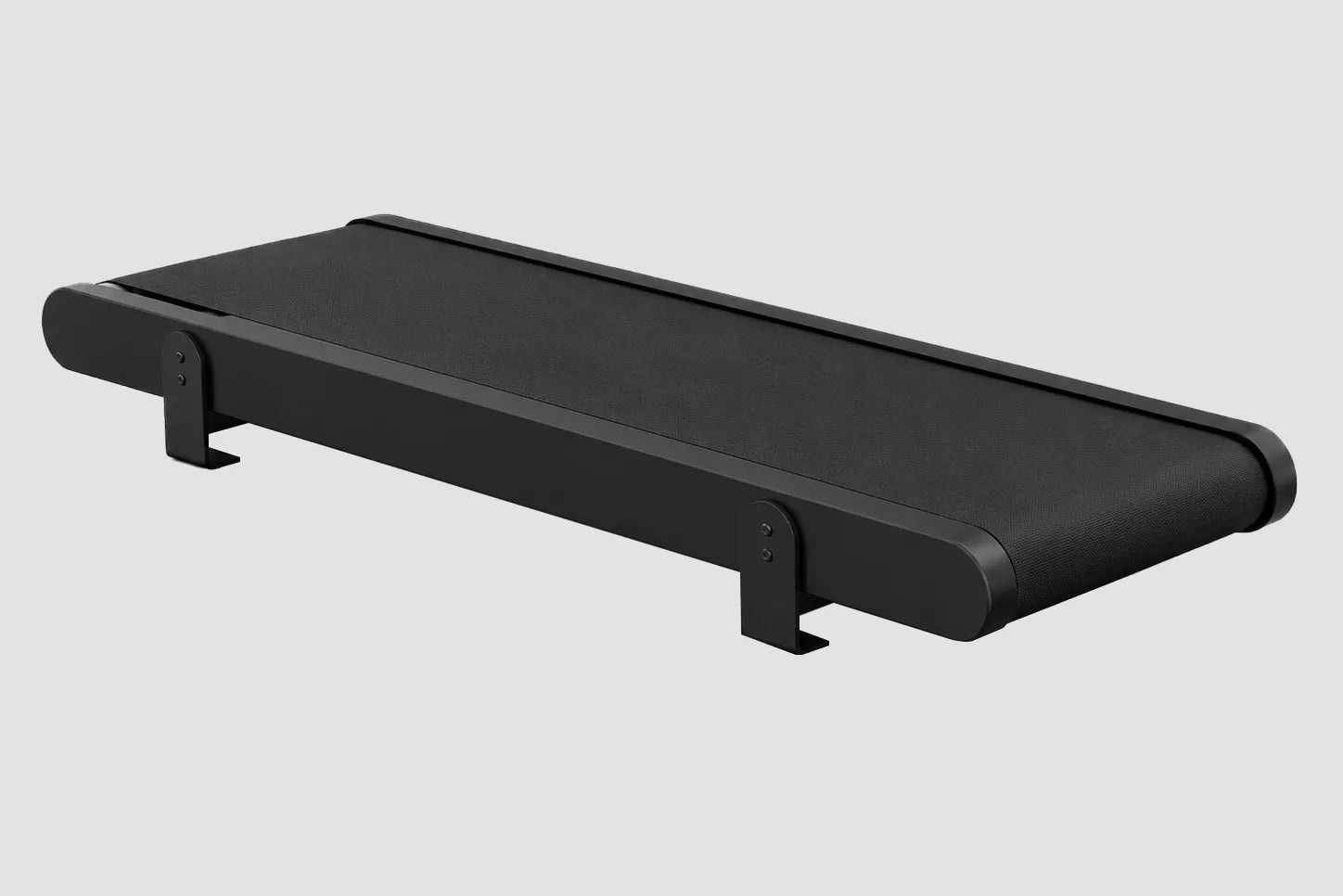

Automatic Conveyor Belt
Paired with a conveyor belt for batch processing, the processing area reaches 250 × 900 mm.
D1 Dual Laser Marking Machine Applications
Process metal identification marks, decorative products, customized gifts and compatible non-metal components using one dual-laser platform.

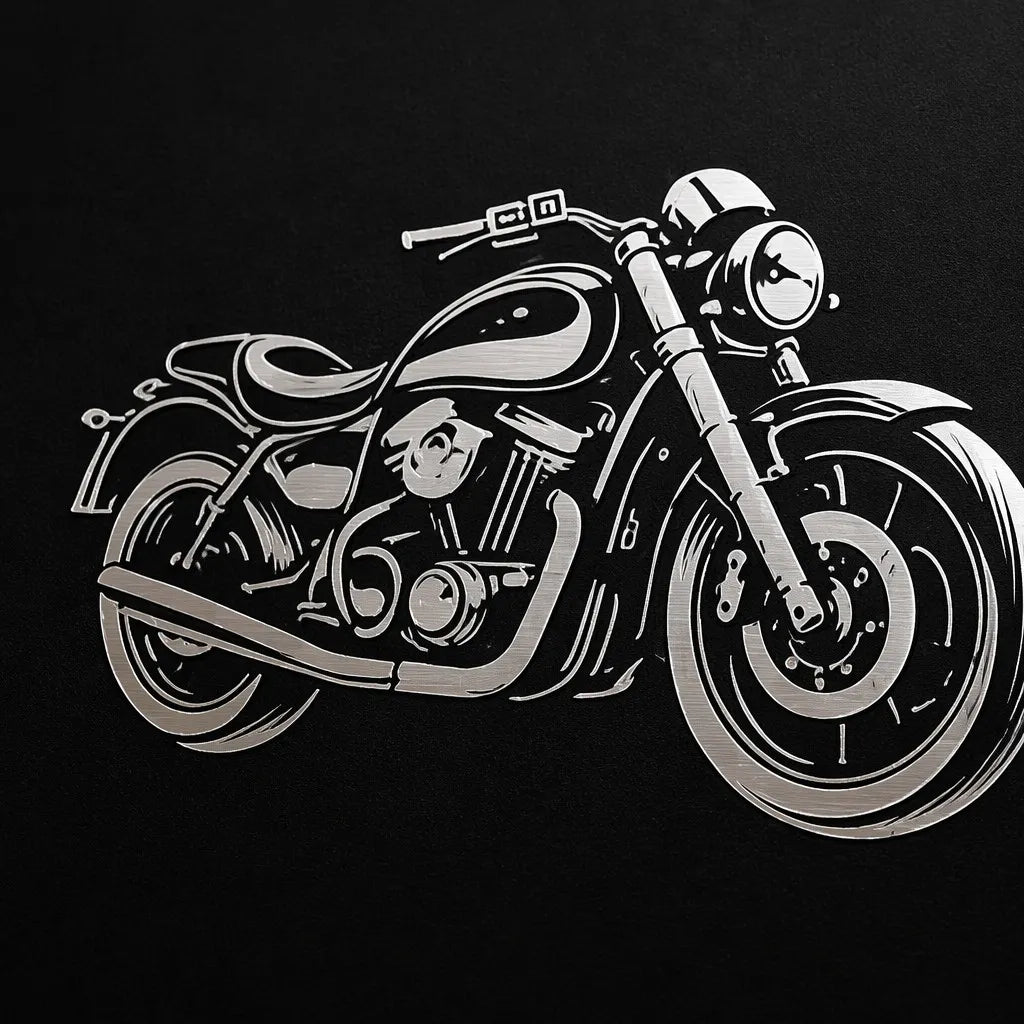

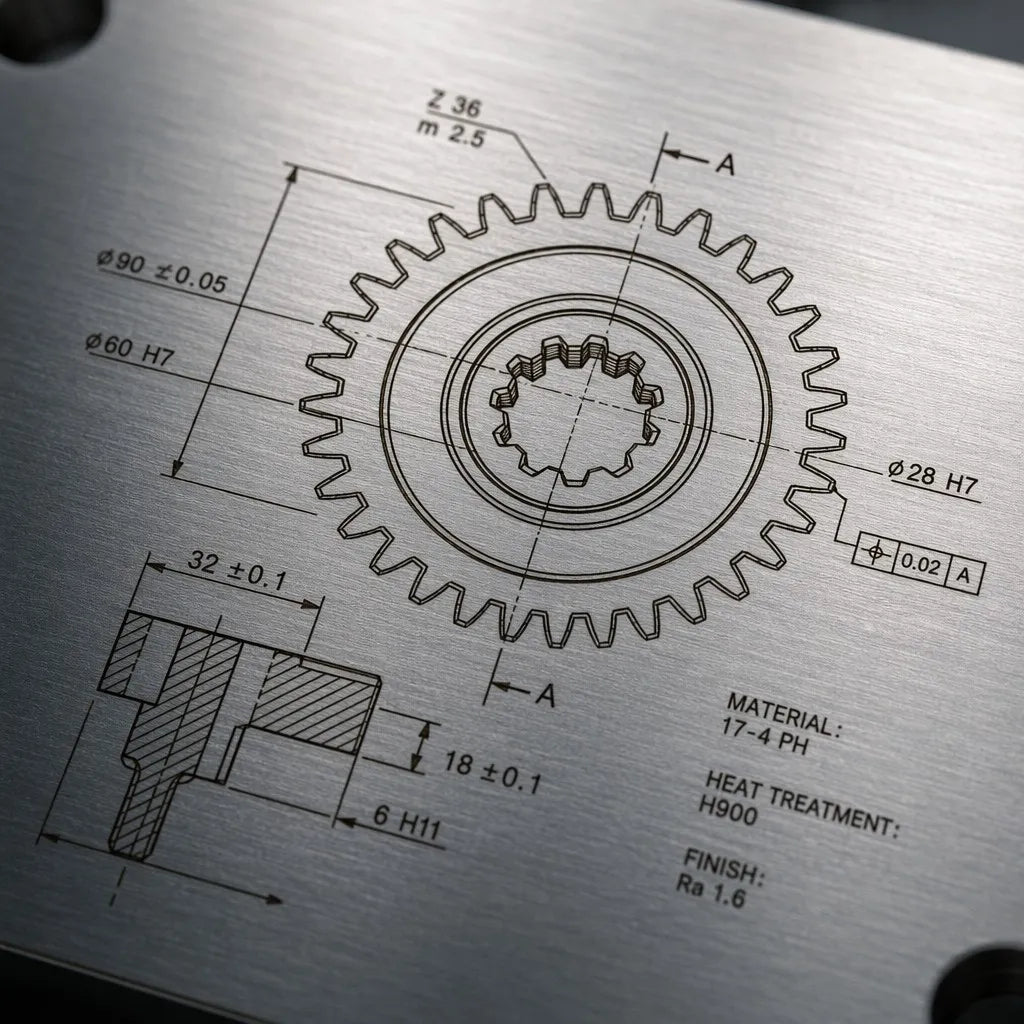

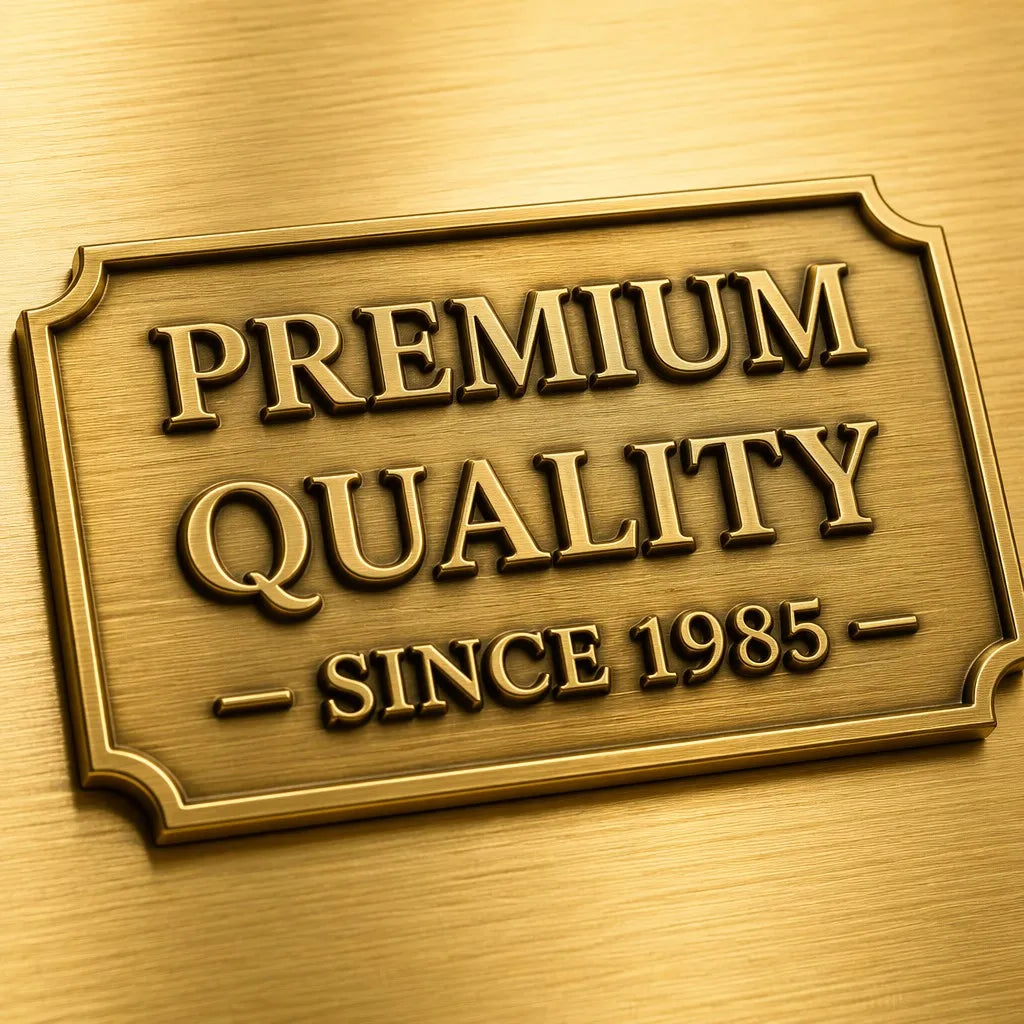

Industrial Metals
Titanium

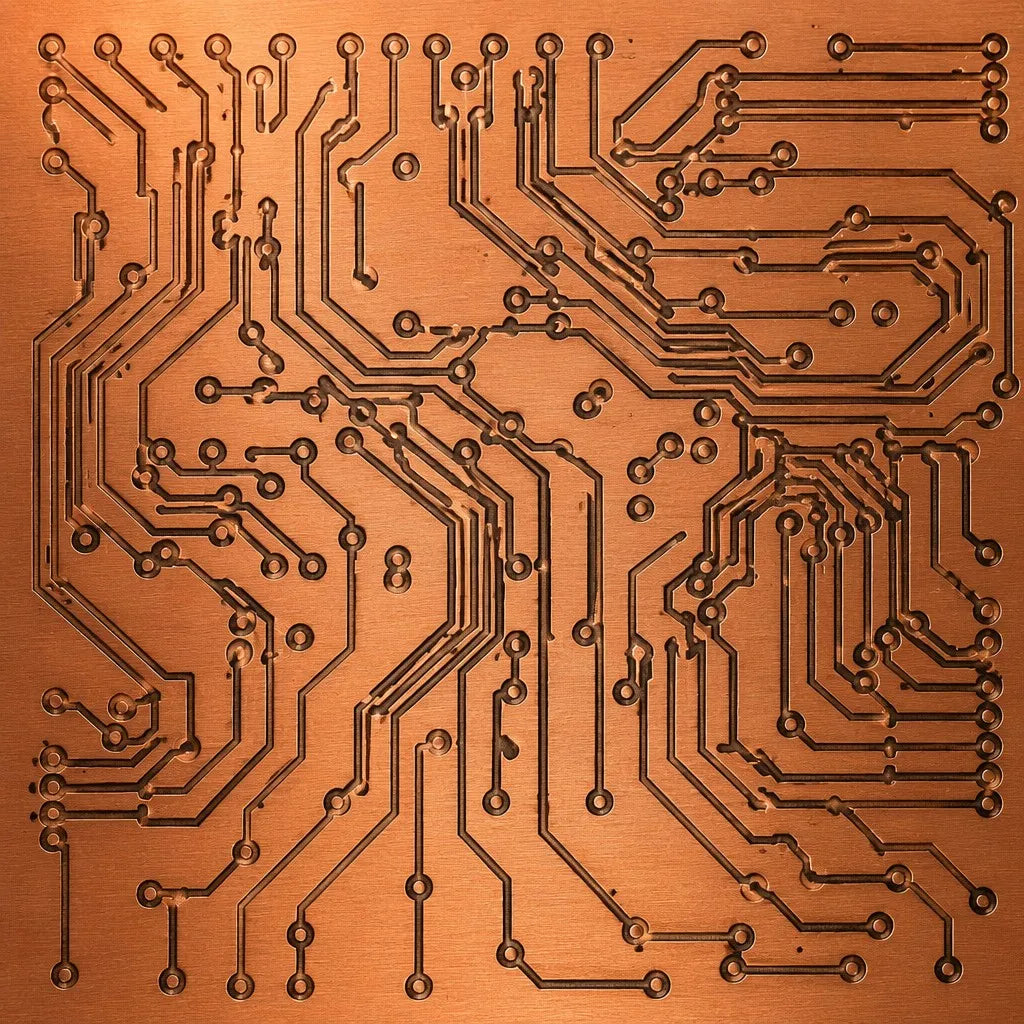

Copper
Stainless Steel
Color Stainless Steel
Brass
Aluminum

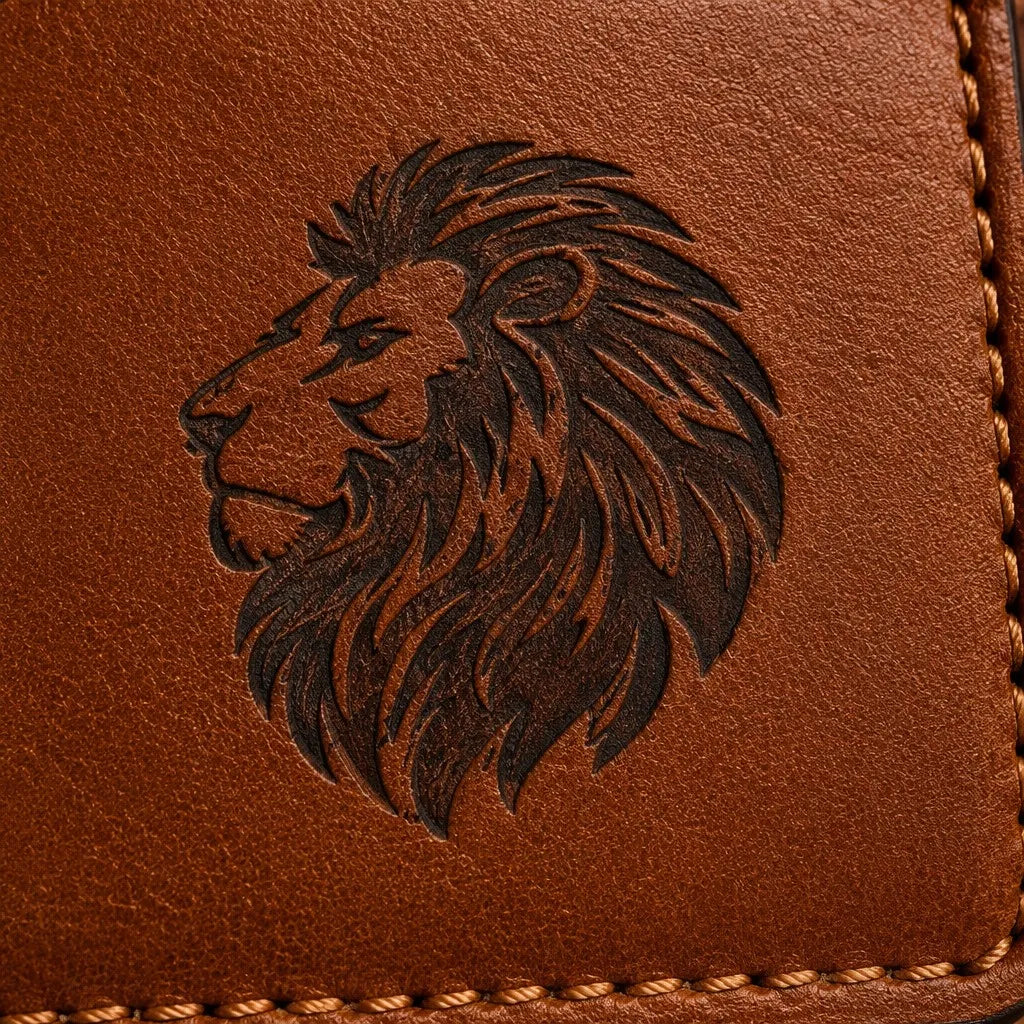

Premium Non-Metals
Oak Wood

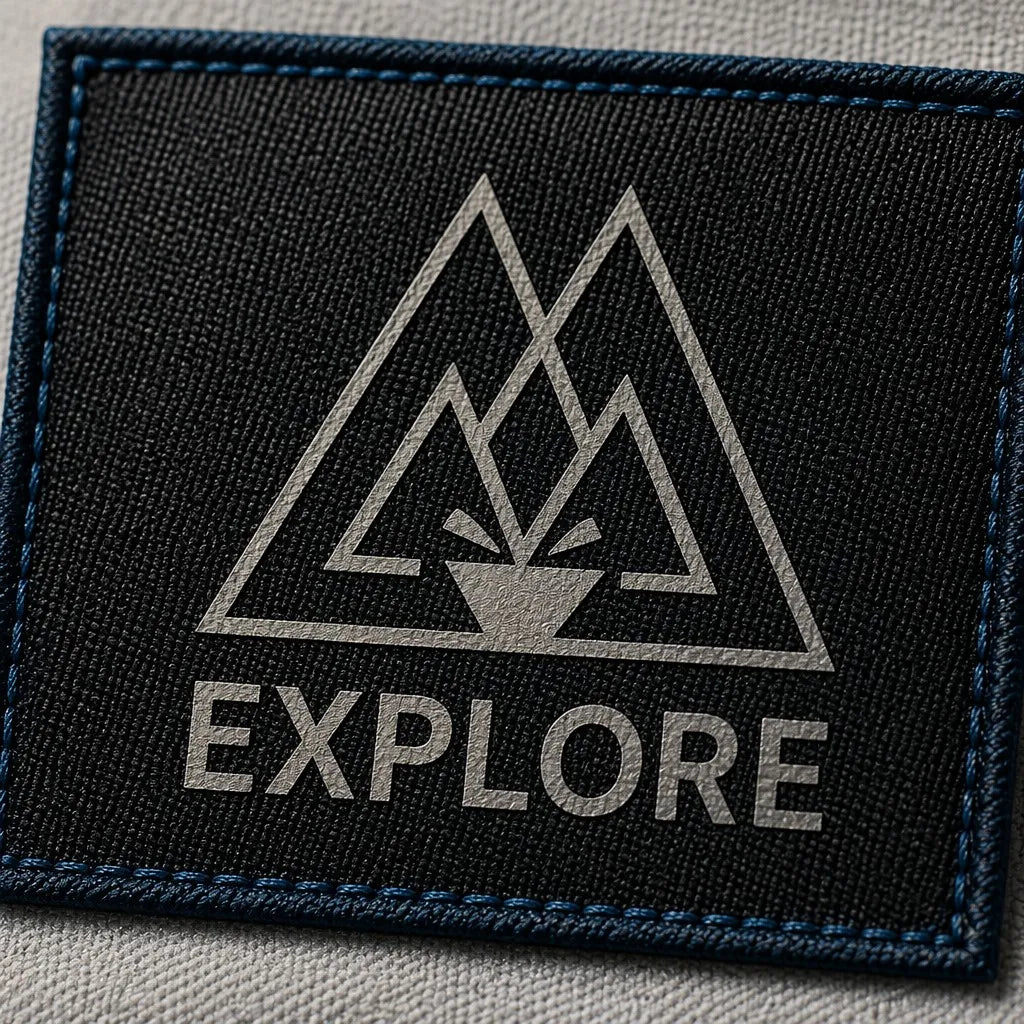

Fabric
Leather

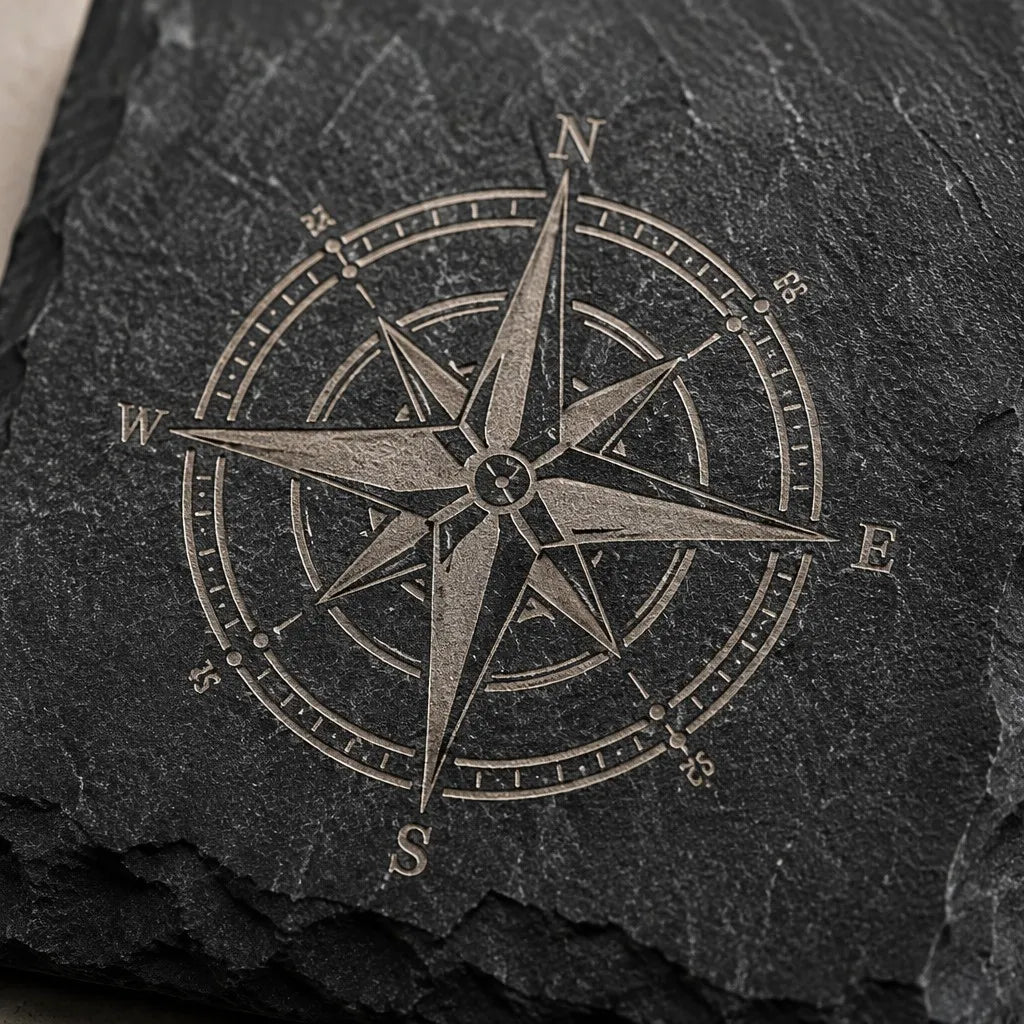

Stone

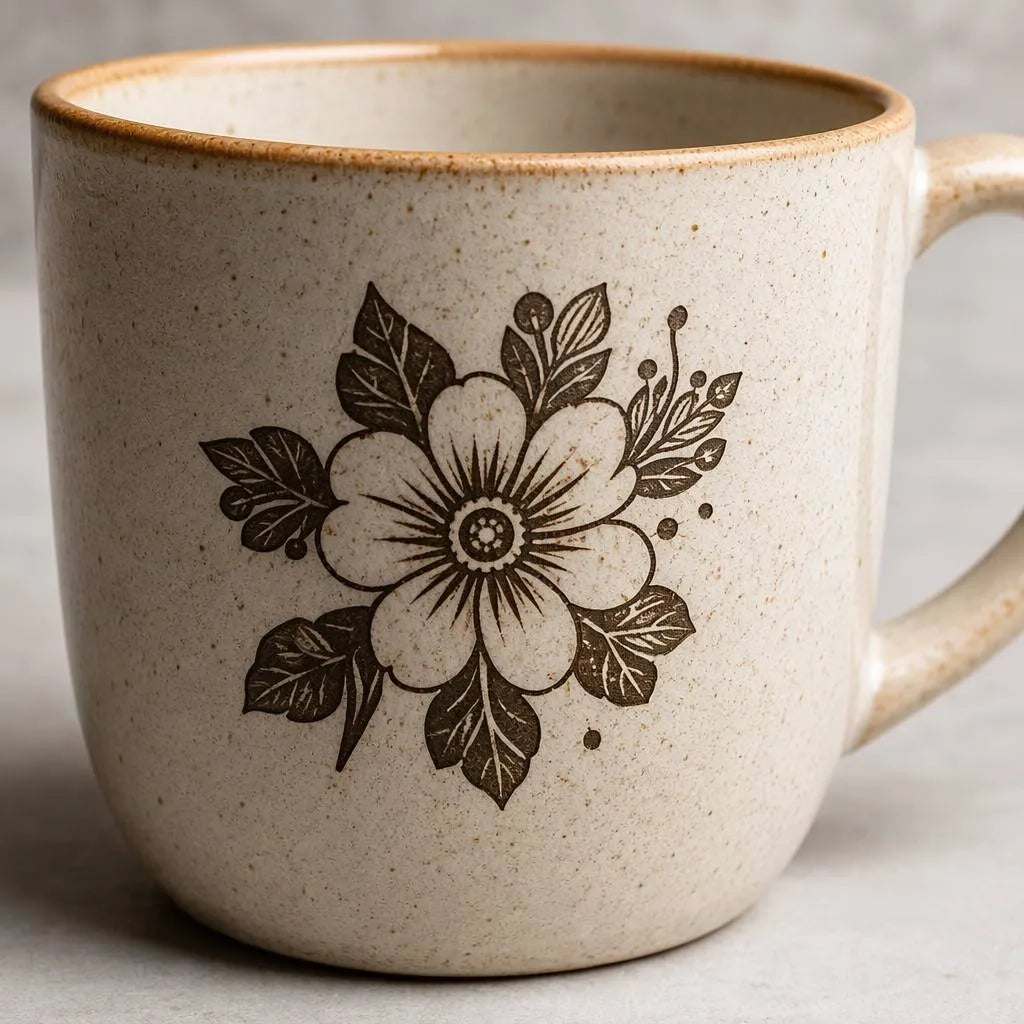

Ceramics
Acrylic

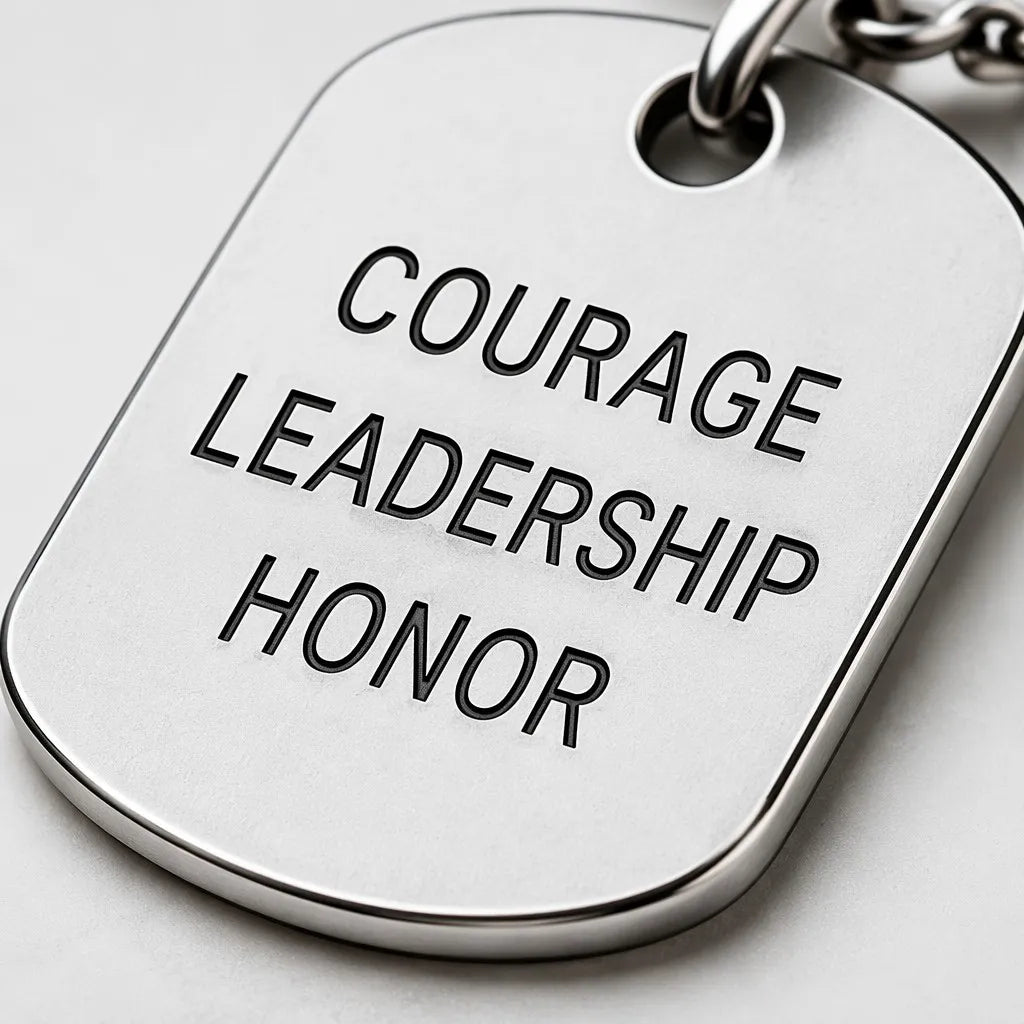

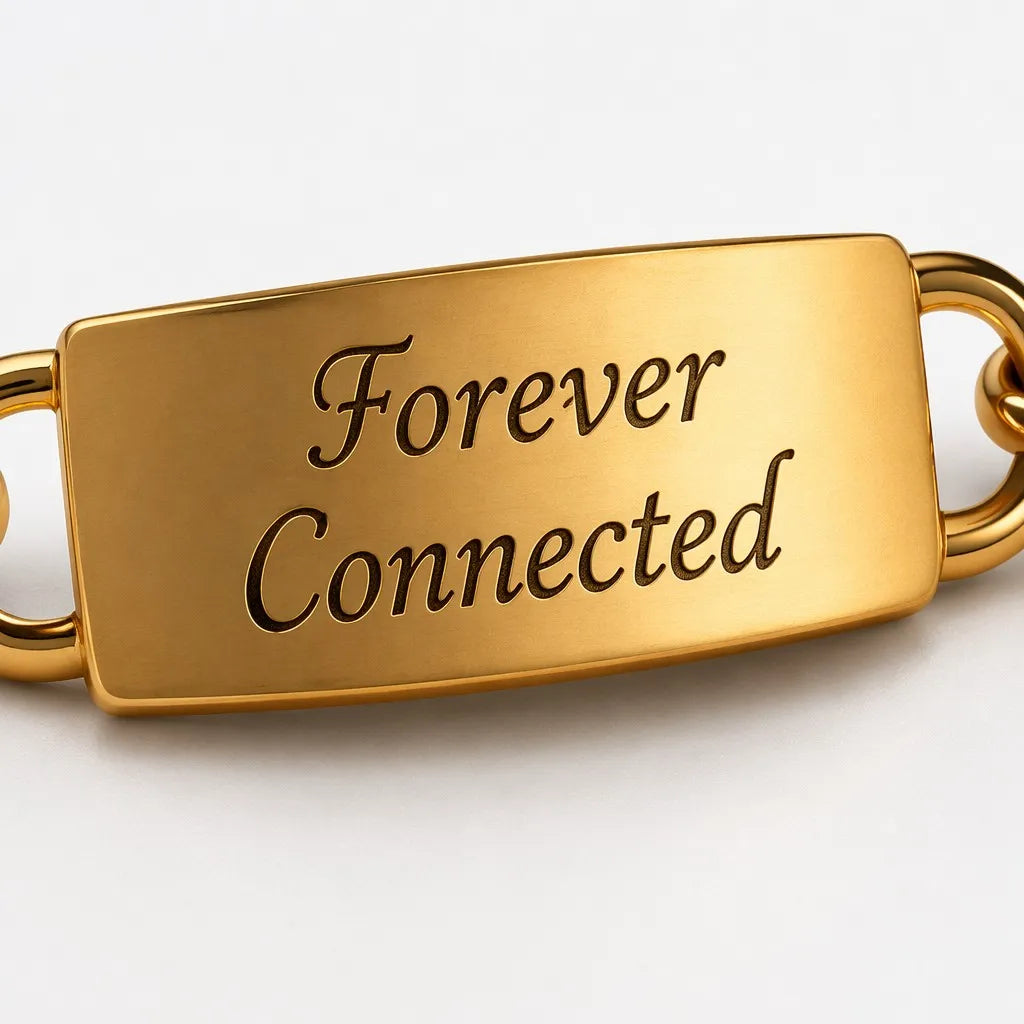

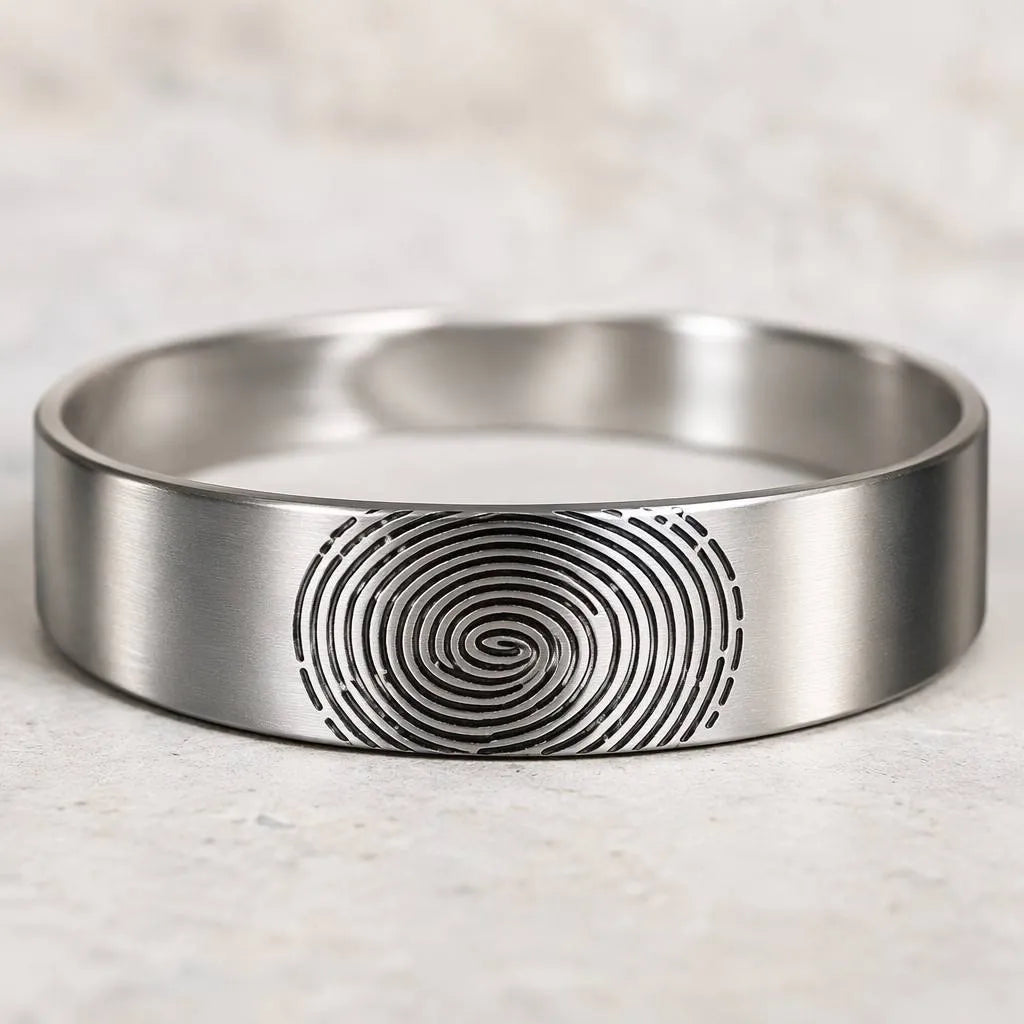

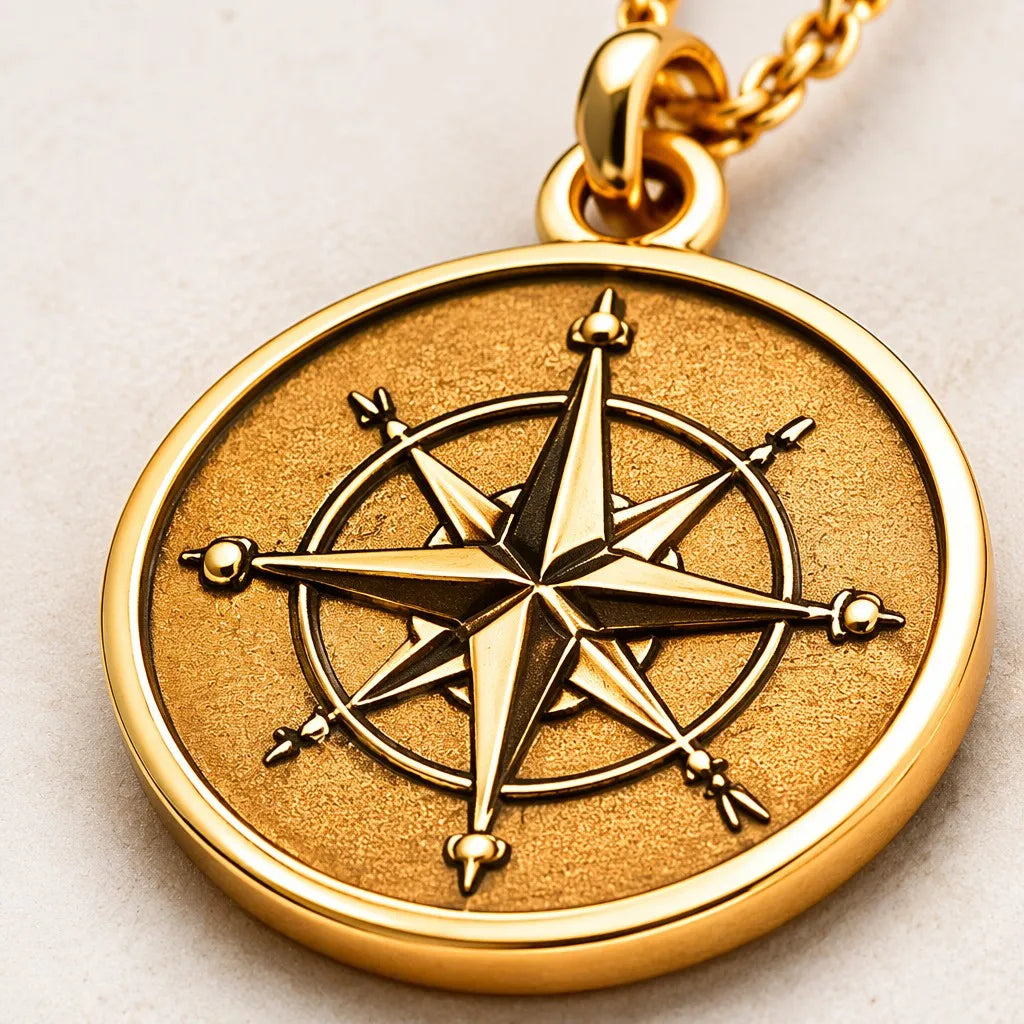

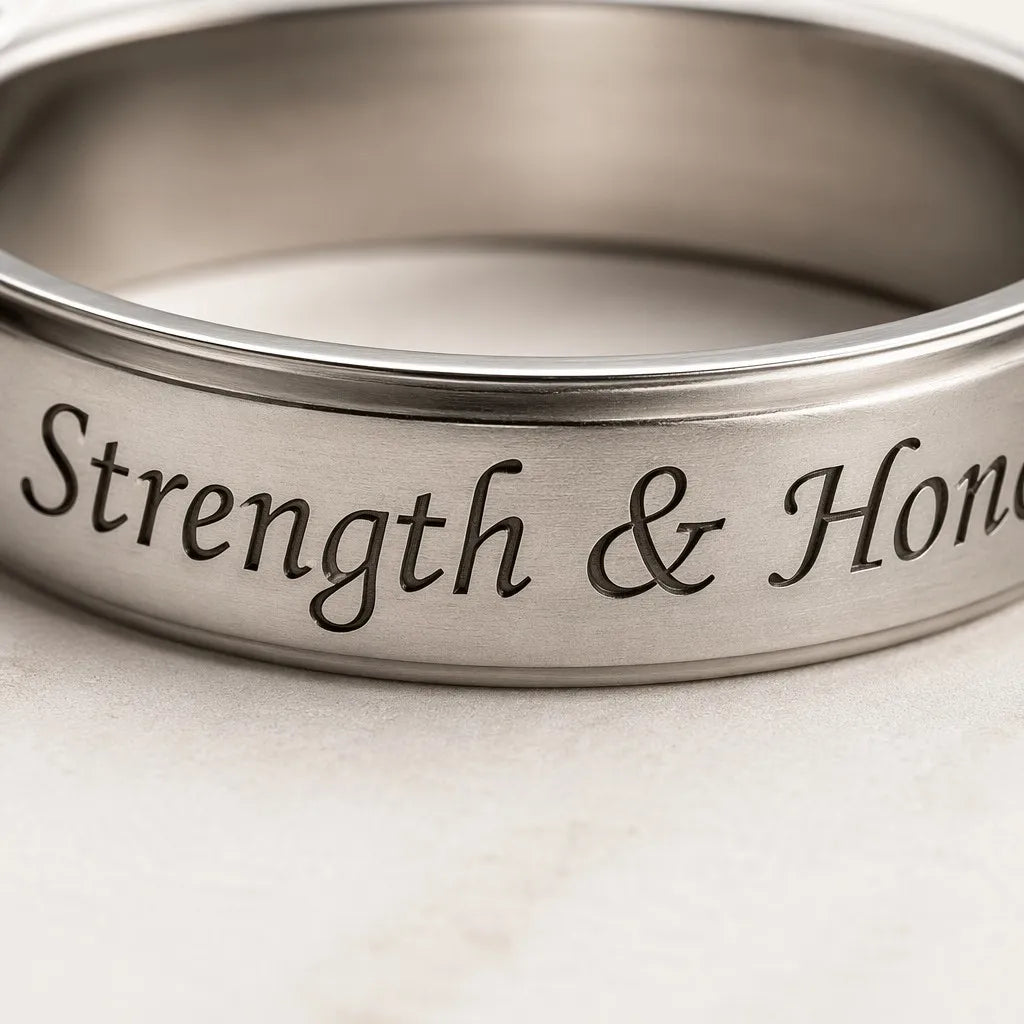

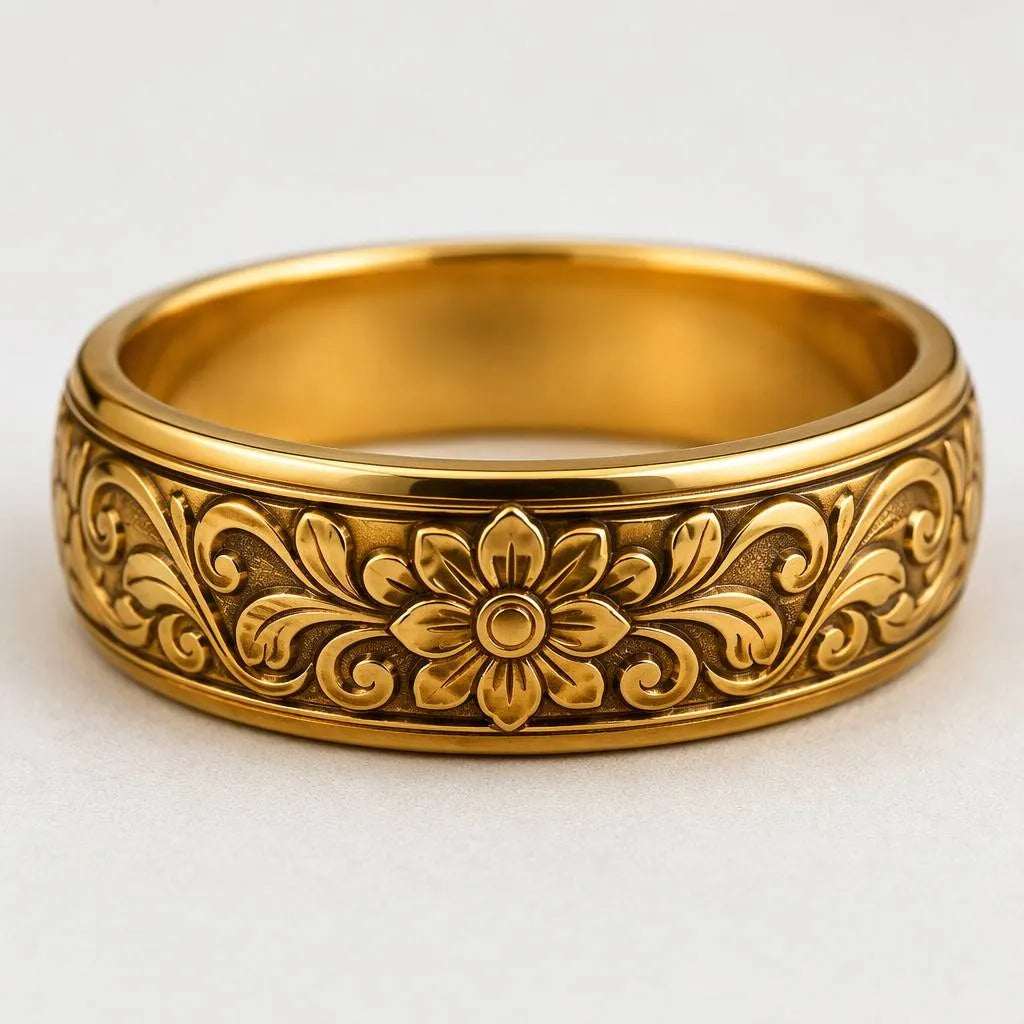

Luxury Jewelry
Gold
Silver Jewelry
Gold Pendants
Silver Ring
Gold Ring
Custom Creations
Technical Specifications
Learn about the detailed parameters of this dual laser marking machine, including machine information, working area, and processing performance. For further information, please contact us.
Basic Information
| Product Name | Dual-Wavelength Laser Marking Machine |
| Product Model | D1 |
| Input Voltage | 110-240V |
| Total Machine Power | <500W |
| Laser Configuration | 60W MOPA + 40W Diode |
| Laser Safety Class | Class 1 |
Working Area
| Worktable Size | 350 × 280 mm |
| Visual Processing Area | 250 × 250 mm |
| Maximum Workpiece Height | 150 mm |
| Expanded Processing Option | Conveyor / Rotary Axis |
| Maximum Expanded Area | 250 × 900 mm |
Processing Performance
| Maximum Marking Speed | 10,000 mm/s |
| Minimum Line Width | 0.06 mm |
| Minimum Character Width | 0.2 mm |
| Maximum Single Engraving Depth | 0.5 mm on Aluminum |
| Repeatability | ±0.01 mm |
| Visual Positioning Accuracy | 0.5 mm |
| Maximum Plywood Cutting Thickness | Up to 22 mm |
Packing List
D1 Dual laser engraver comes with the necessary accessories for installation, operation, and initial material testing.

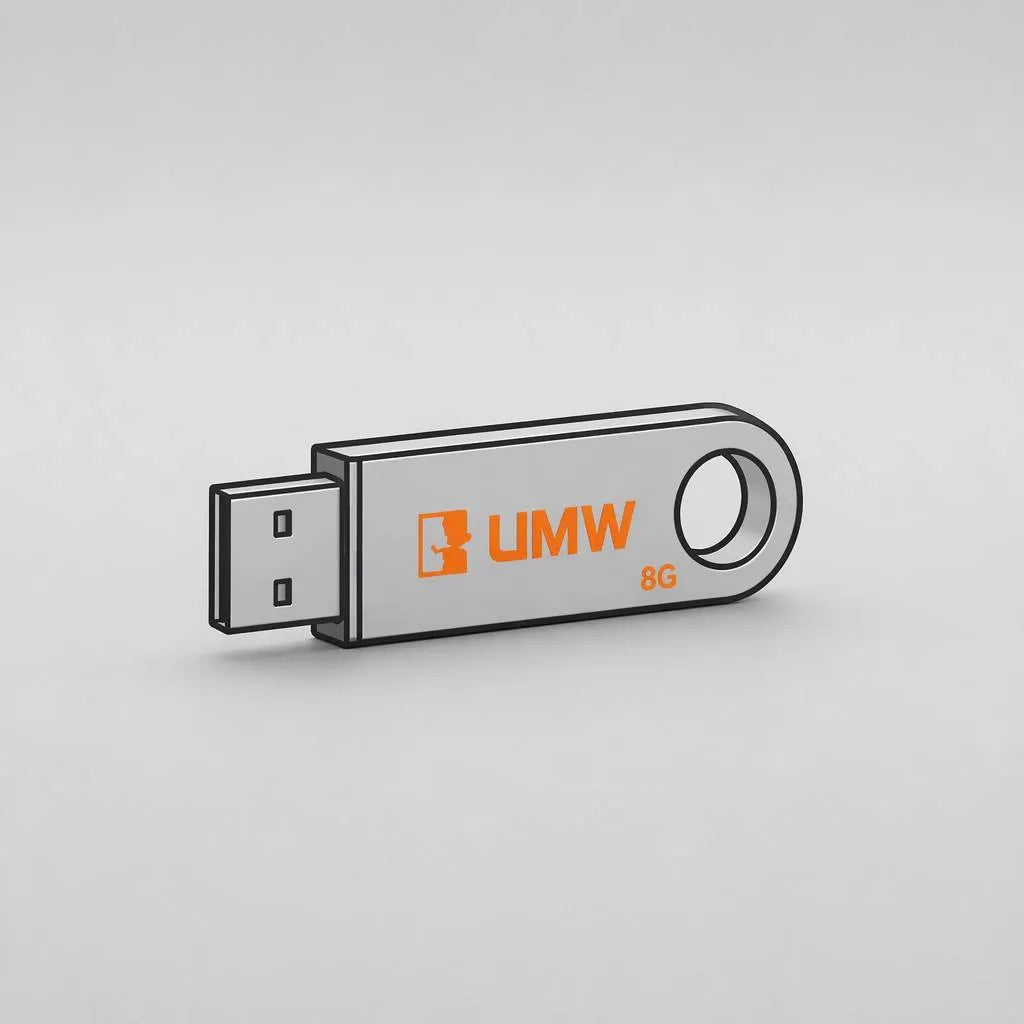

USB Drive

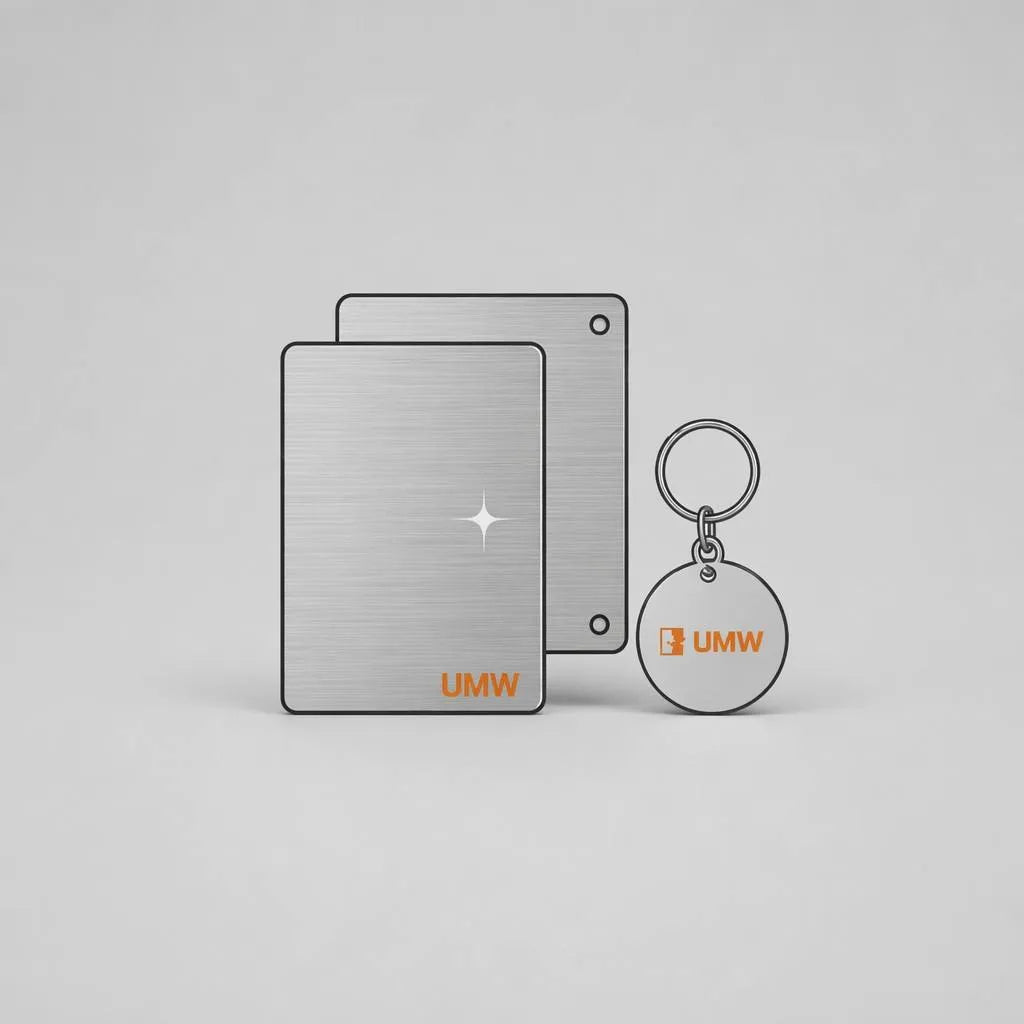

Material Pack

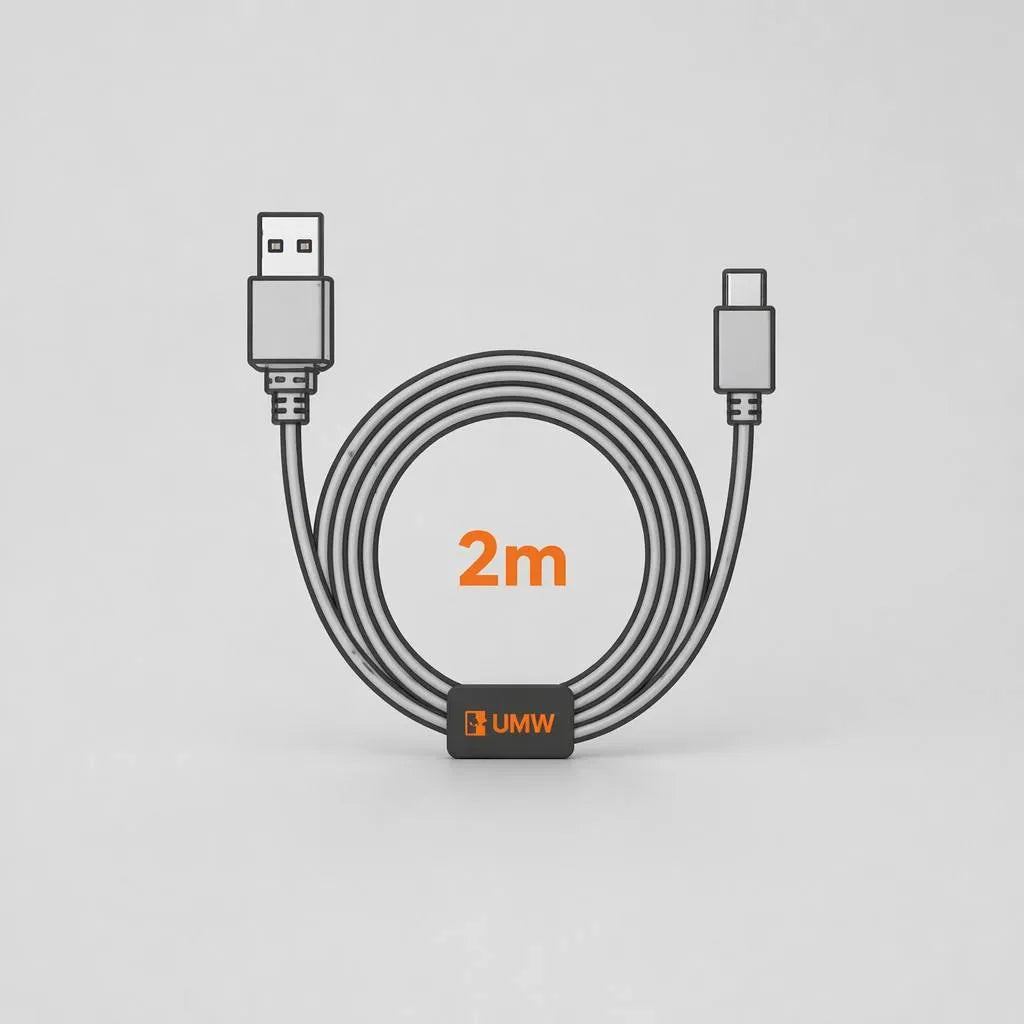

USB Cable

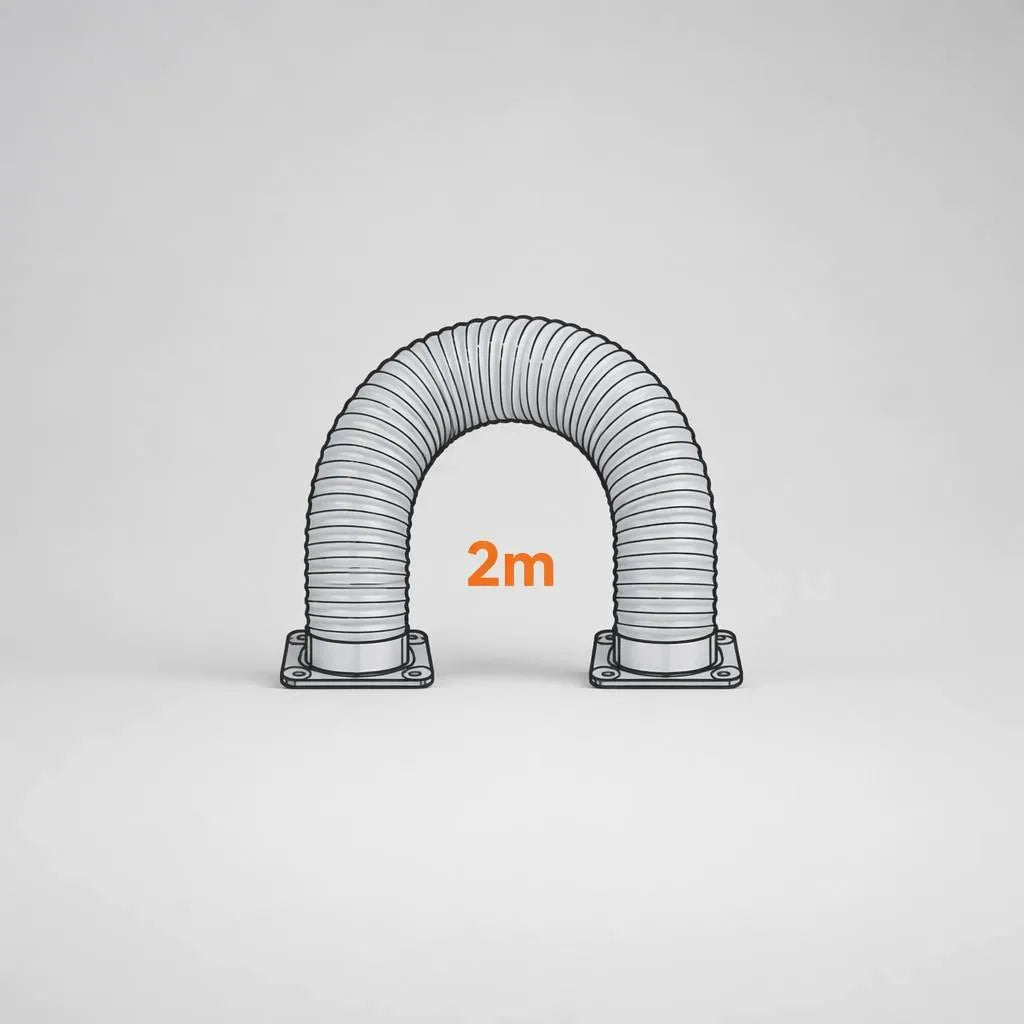

Exhaust Pipe

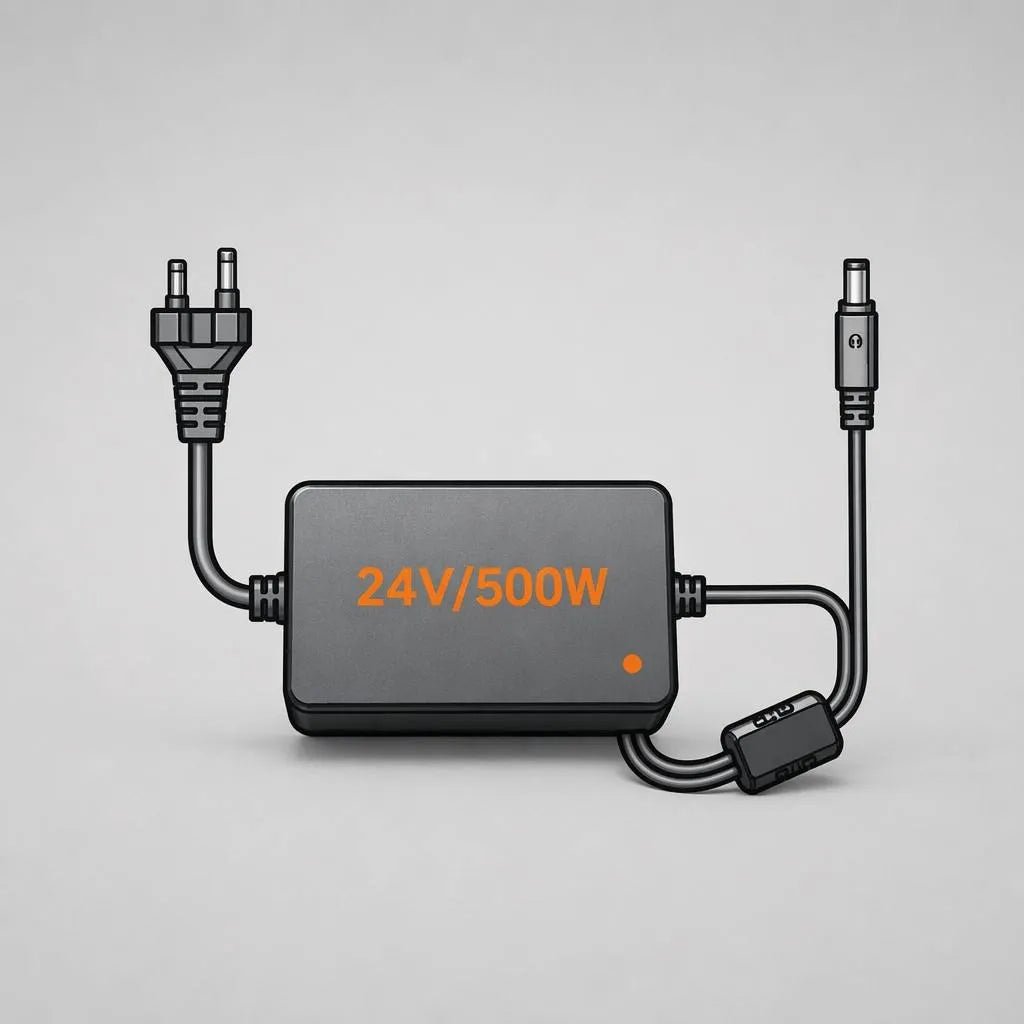

Power Adapter
User Manual
D1 Dual Laser Marking Machines FAQs
The following are some common problems encountered when purchasing the D1 dual laser marking machines.
