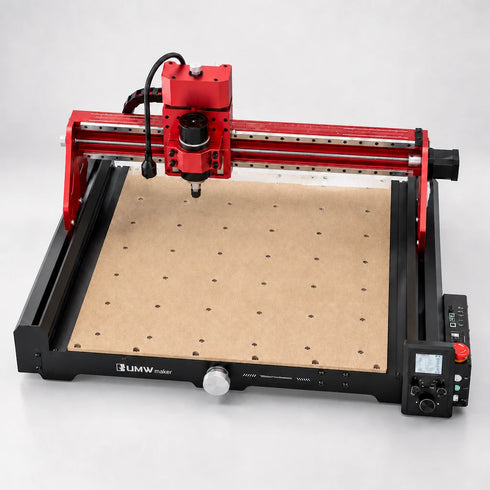

R1 Desktop CNC Router Machine
You Save: $50.00 (7%)
200 W Spindle Power
Up to 12,000 RPM Spindle Speed
400 × 400 mm Usable Working Area
0.1 mm/Step Manual Positioning

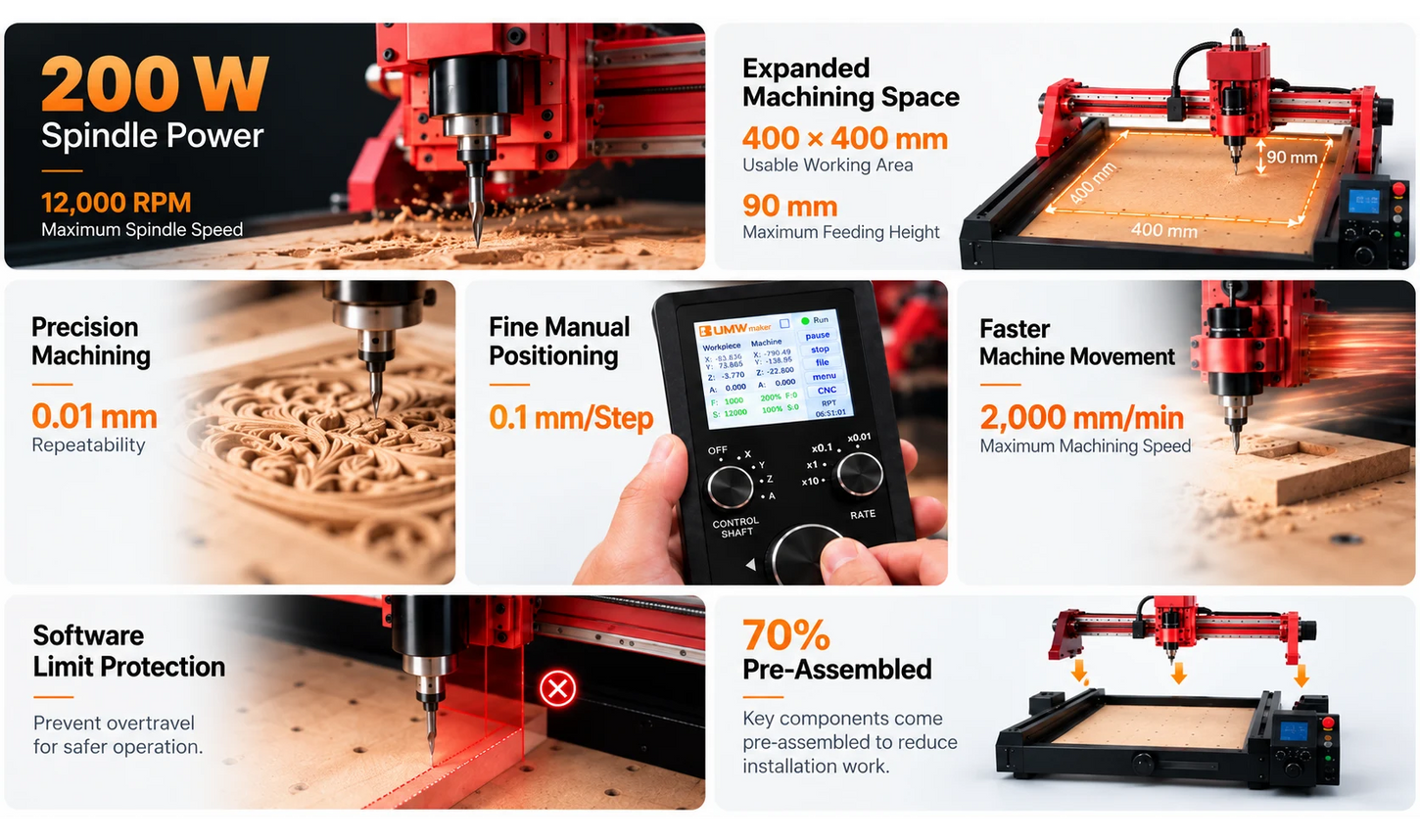

Key Advantages of R1 Desktop CNC Router
Explore the R1's precision, spindle performance, and flexible machining capabilities for engraving, milling, and custom projects.

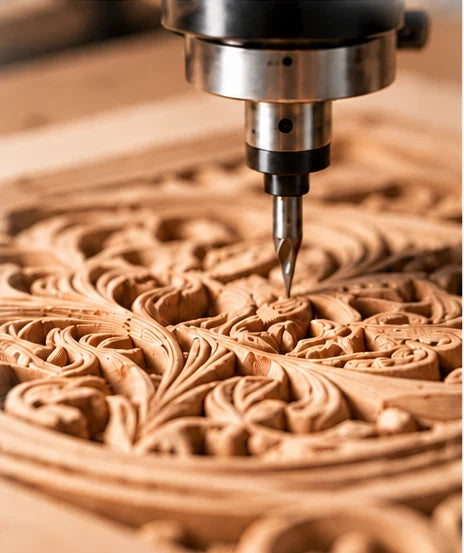

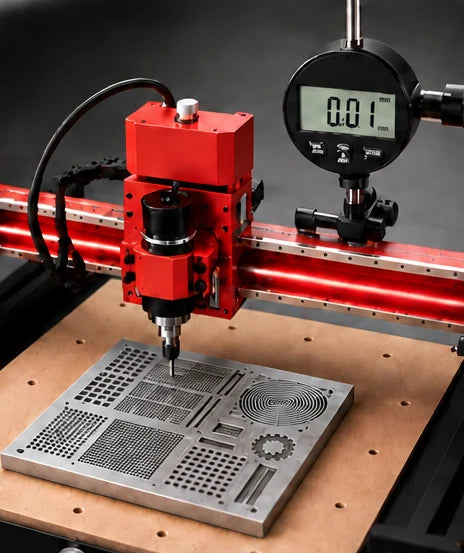

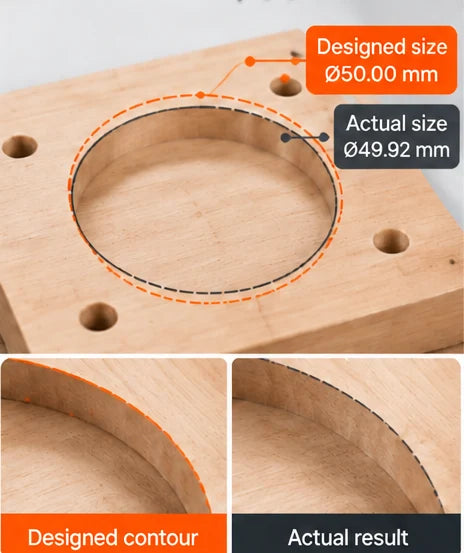

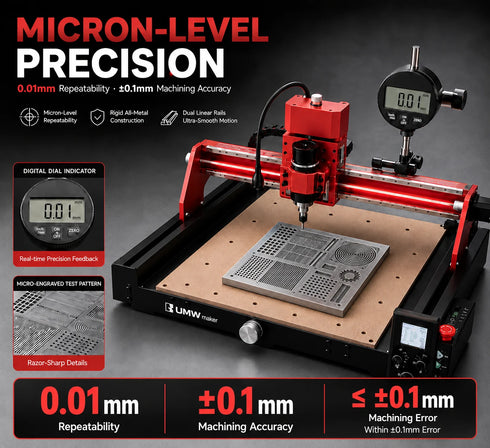

Precision You Can Measure
Controlled positioning and proper machine calibration help support detailed engraving and consistent machining results.
0.01mm
Repeatability
±0.1 mm
Positioning Accuracy
Within ±0.1 mm
Machining Error

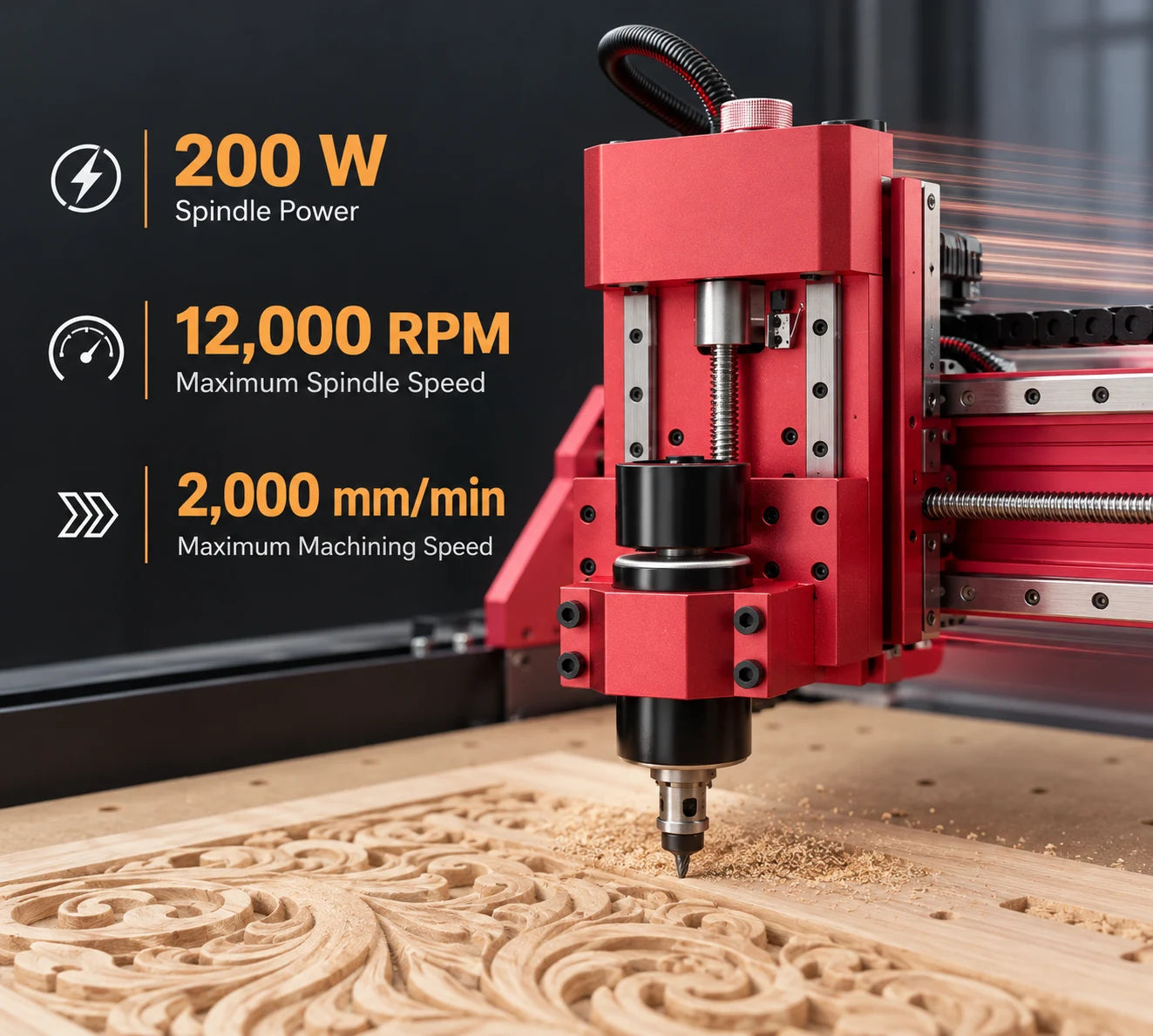

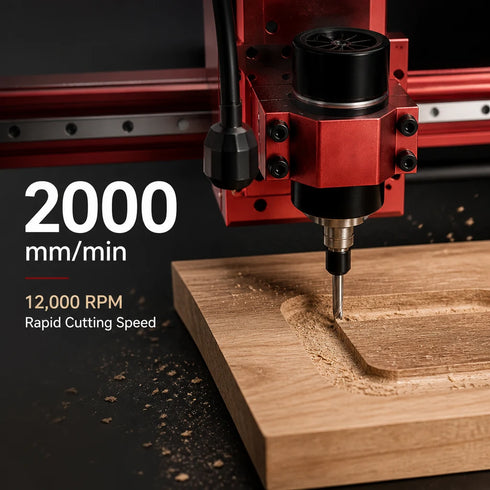

200 W Power. Up to 12,000 RPM
Designed for controlled engraving and milling, the R1 desktop cnc router machine combines spindle performance with adjustable machining parameters for compatible materials.
Delivers more spindle power than 80–120 W setups for detailed carving and light milling on compatible materials.
Offers 50% higher maximum spindle speed than 8,000 RPM systems, supporting efficient cutting with suitable tools.
Provides up to 67% higher maximum machining speed than 1,200 mm/min systems, enabling faster machine movement when operating conditions allow.
Expand Your Capabilities Beyond Flat-Surface Engraving
Compatible positioning accessories and rotary machining hardware can expand the types of projects your machine supports.

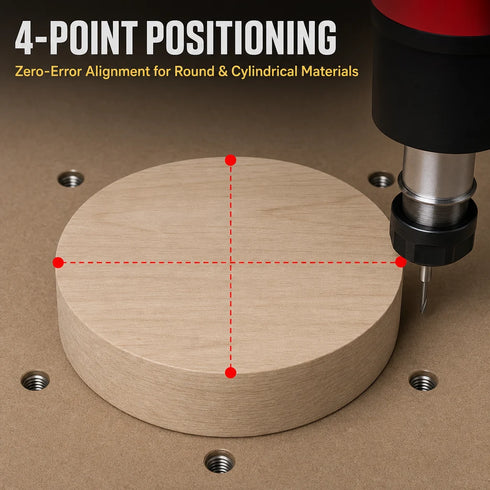

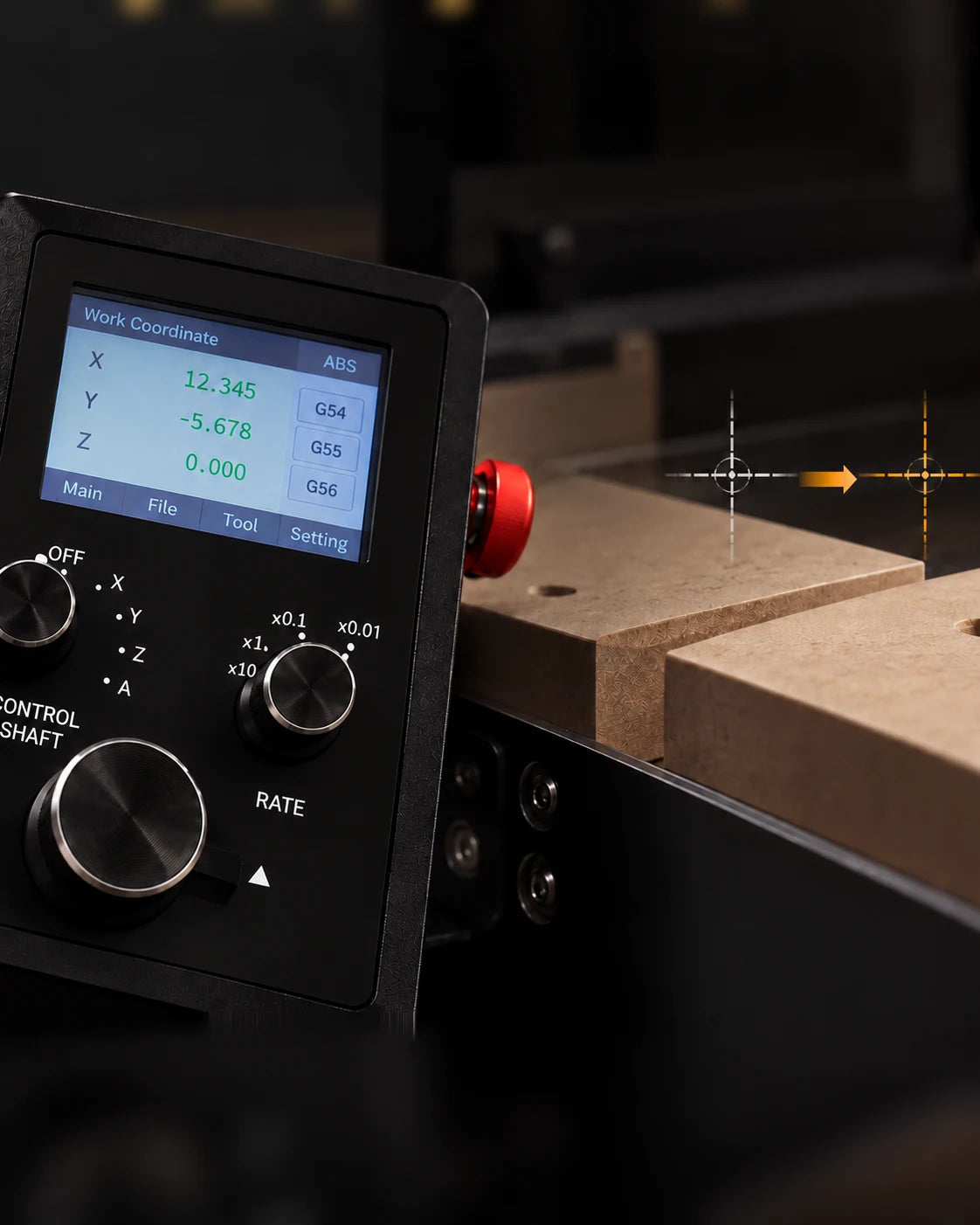

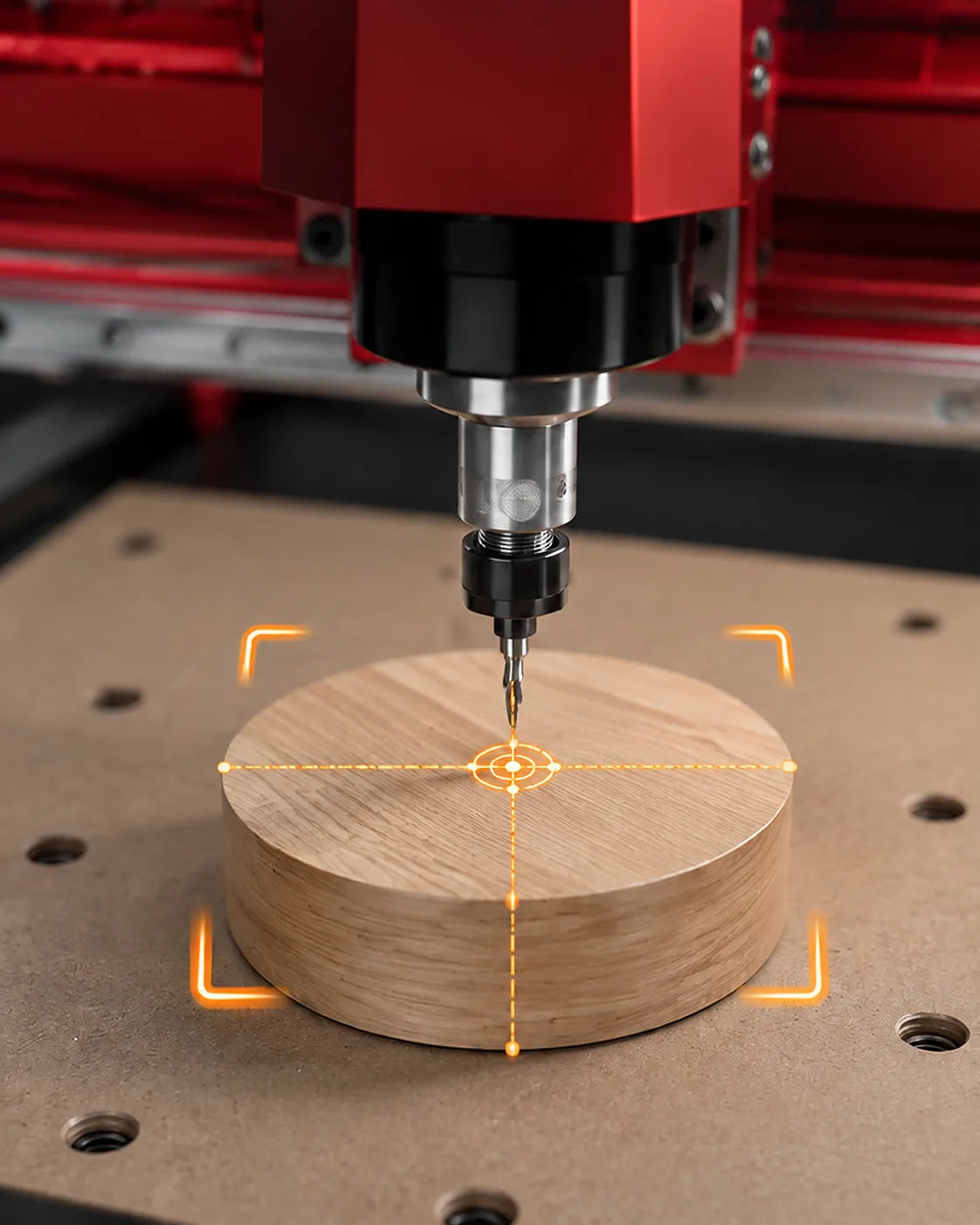

Workpiece Centering
Align a workpiece around a reference center before machining.

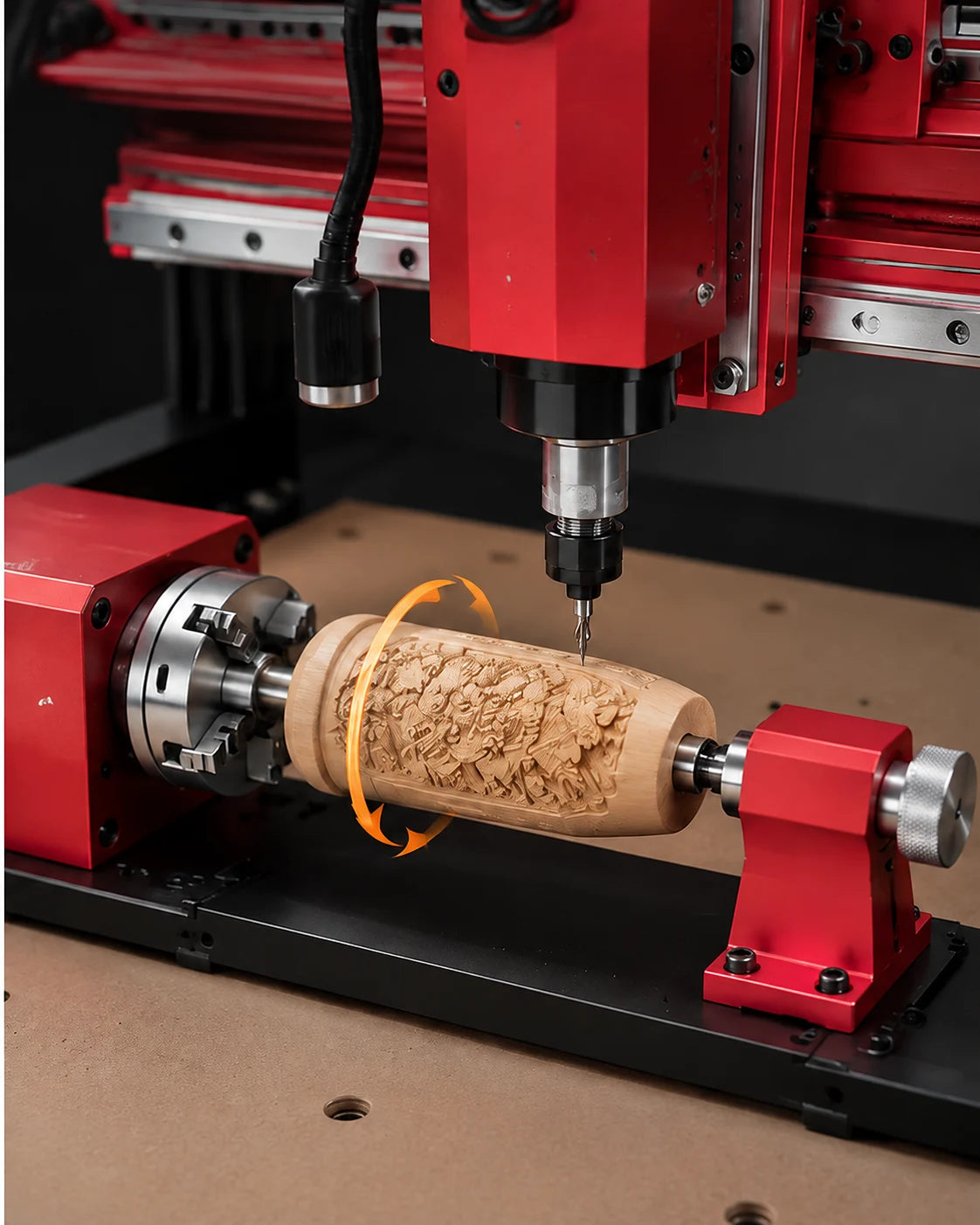

Optional 4-Axis Machining
Supports cylindrical machining with optional hardware.
Positioning Compensation
Calibration procedures can help improve setup consistency.

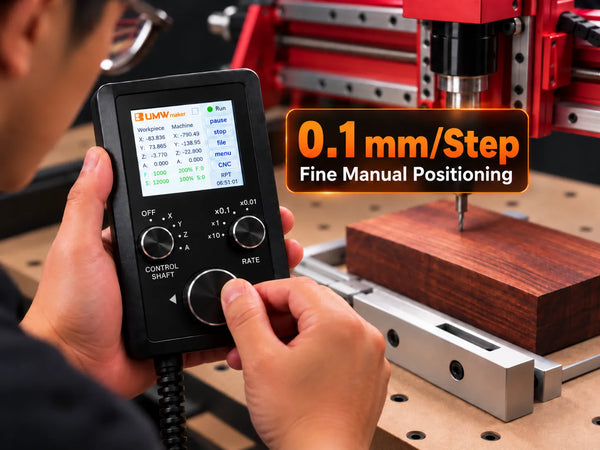

Industrial-Grade Handwheel for Precise Manual Control
Equipped with an industrial-grade handwheel, the R1 enables manual axis control and fine positioning in 0.1 mm increments.

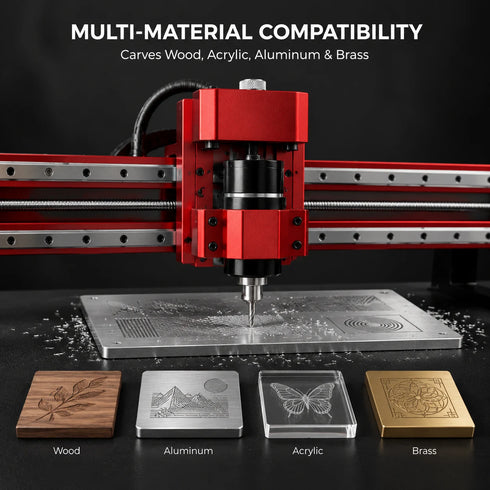

What Can You Make with the R1?
With the right tools and configuration, you can use the R1 desktop CNC router machine to create wooden signs, engrave soft metals suitable for machining, and mill PCB prototypes.

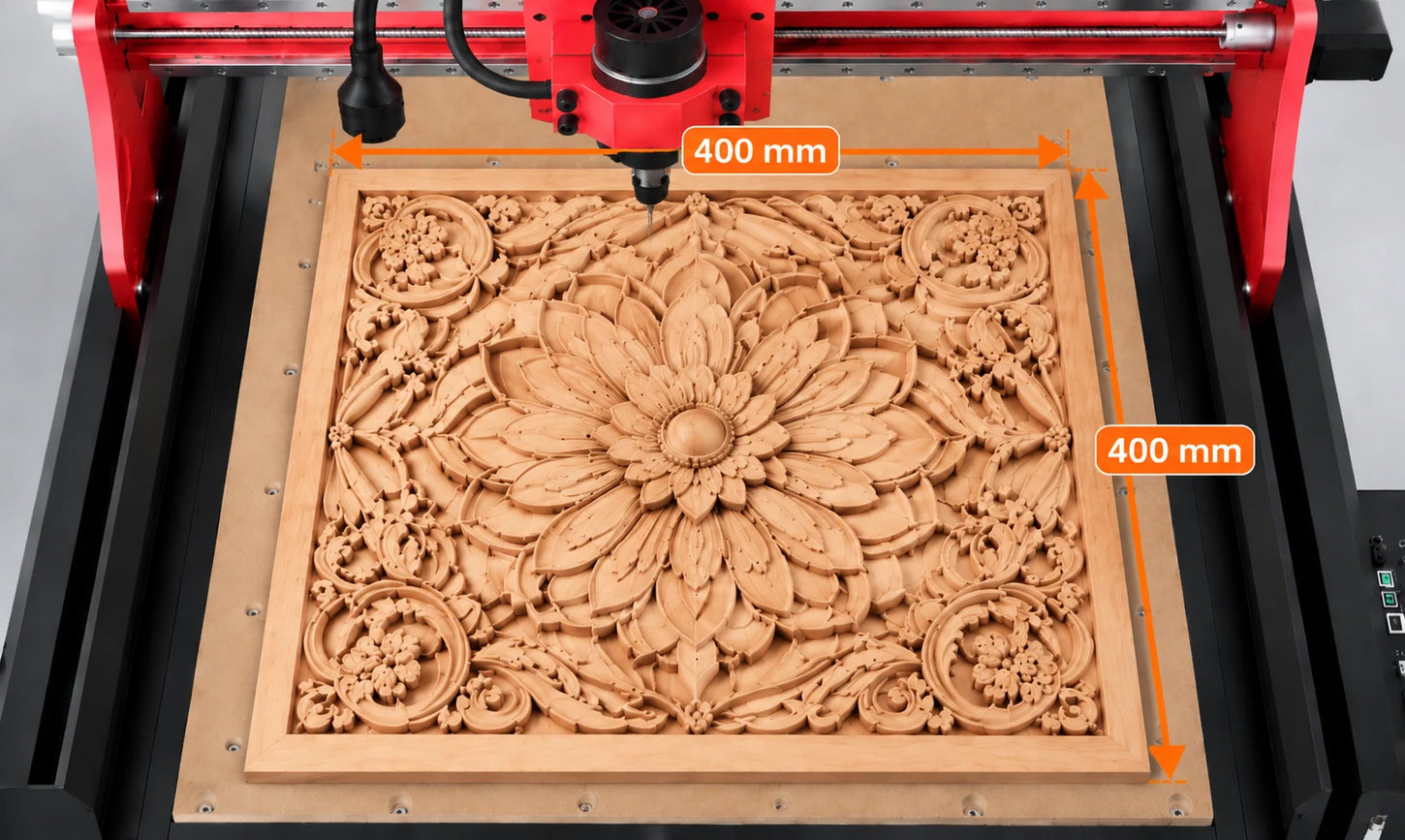

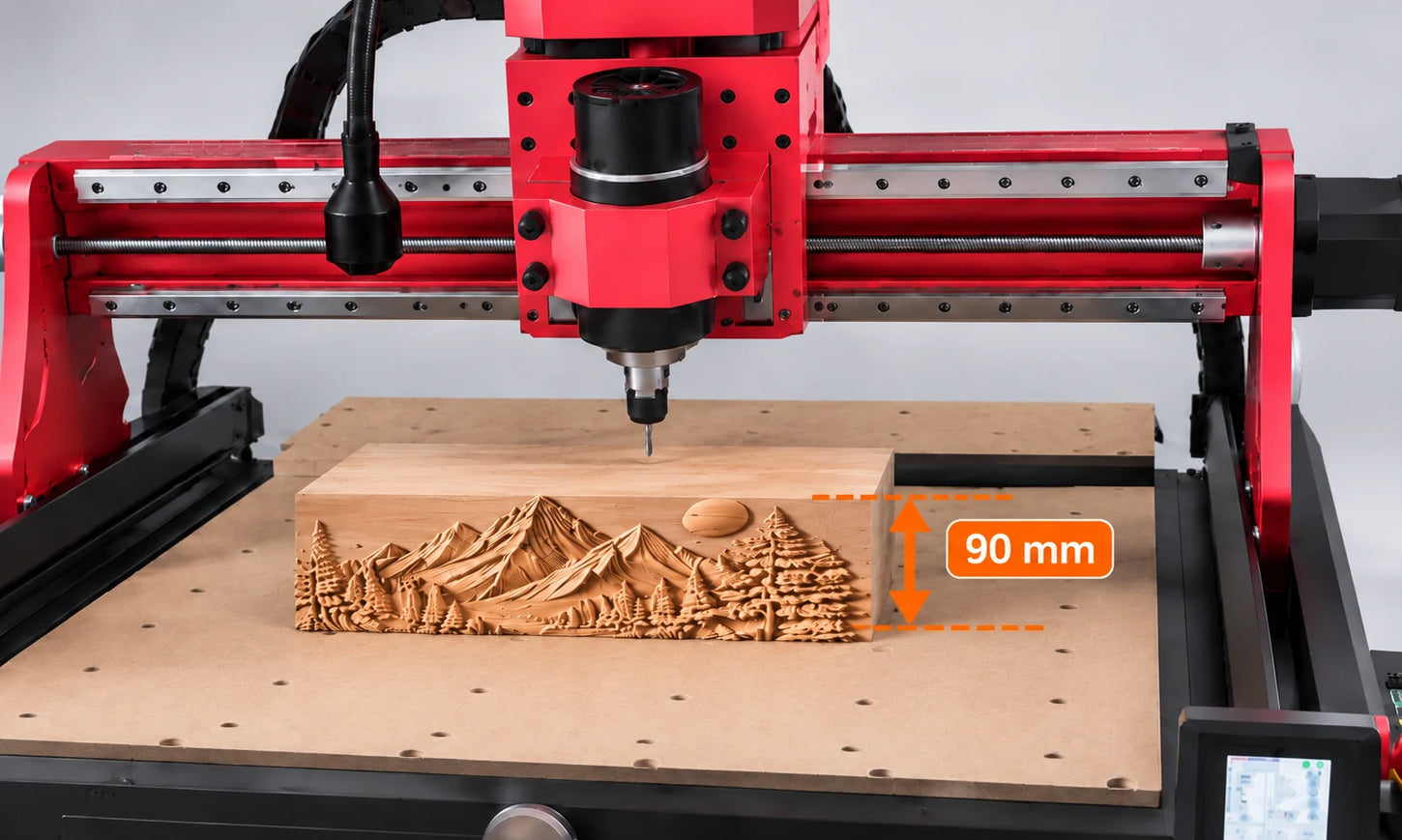

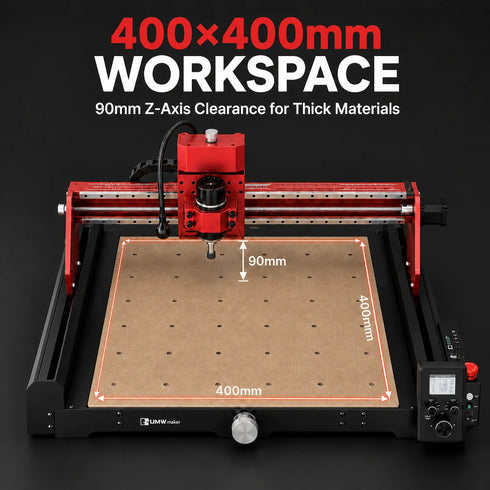

A Larger Workspace for Bigger Projects
Engrave larger panels, create custom signs, and process multiple small parts in one setup. With a maximum feeding height of 90 mm, the R1 desktop CNC wood router also accommodates thicker materials and multi-layer workpieces.
400 × 400 mm
Usable Working Area
90 mm
Maximum Feeding Height

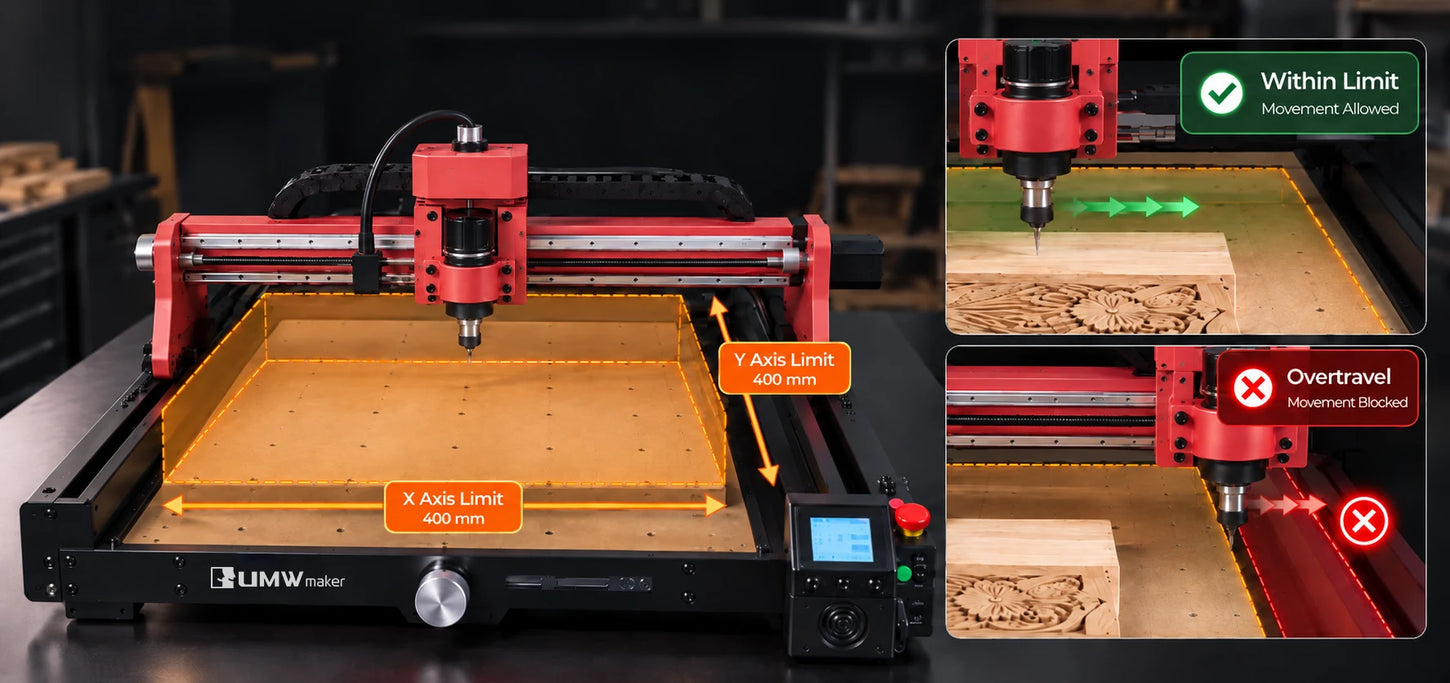

Software Limit Protection
Software-based travel limits help keep machine movement within the configured working range, reducing the risk of overtravel during operation.

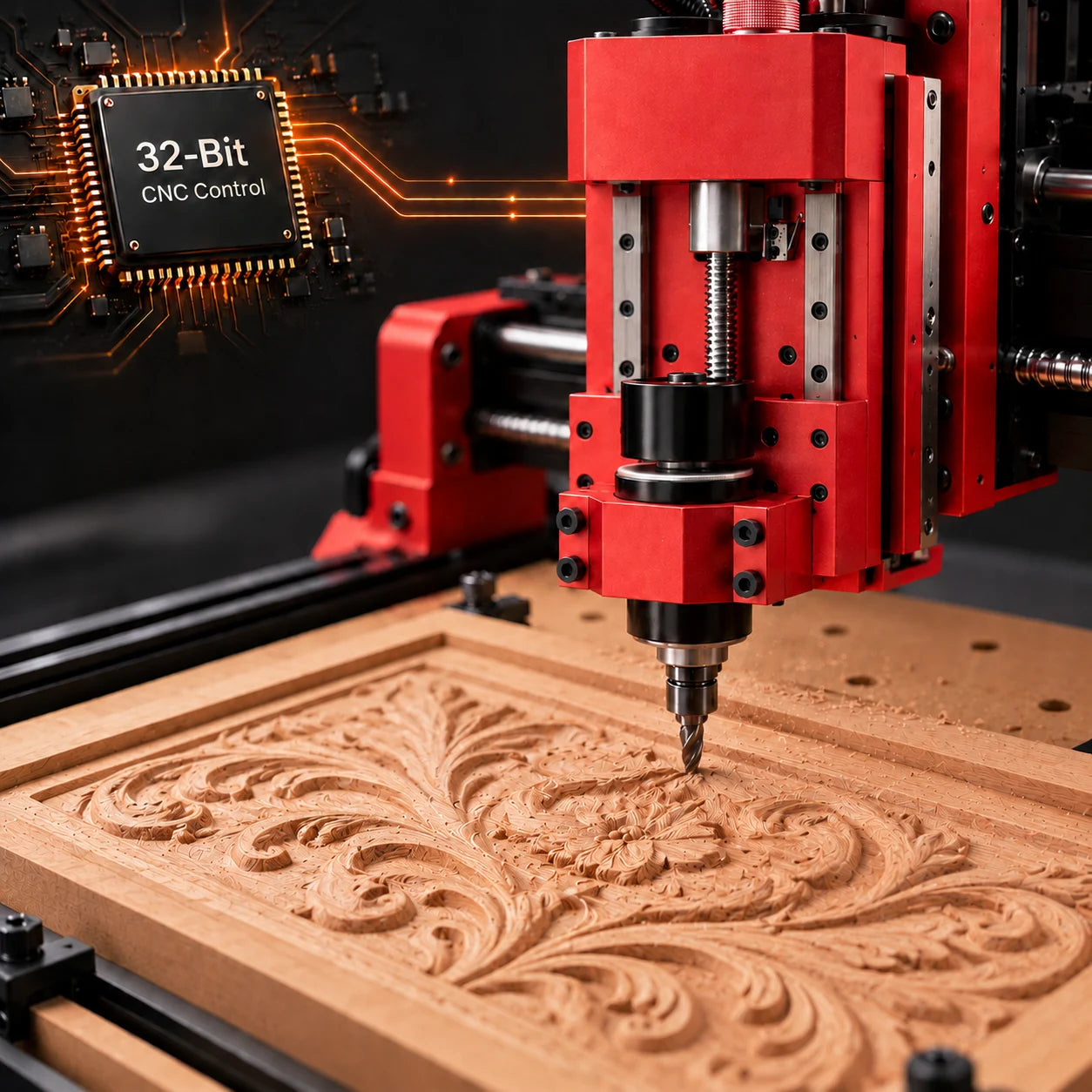

32-Bit CNC Control System
The 32-bit control software helps deliver consistent motion control for engraving and milling.
Pre-Assembled for Faster Setup
Pre-assembled components help reduce setup work, making it easier to prepare the R1 for your first CNC project.
Technical Specifications
Explore the technical specifications of the R1 small desktop CNC router machine.
| Product Type | Desktop CNC Router |
|---|---|
| Model | R1 |
| Repeatability | 0.01 mm |
| Positioning Accuracy | ±0.1 mm |
| Machining Error | Within ±0.1 mm |
| Usable Working Area | 400 × 400 mm |
| Maximum Feeding Height | 90 mm |
| Spindle Power | 200 W |
| Maximum Spindle Speed | 12,000 RPM |
| Tool Holder Range | 1-8mm |
| Maximum Machine Speed | 2,000 mm/min |
| Manual Movement Increment | 0.1 mm/step |
| Controller | 32-Bit CNC Controller |
| Weight | 23KG |
| Dimension | 631*682*424mm |
| Material Compatibility | Compatible wood, MDF, PCB materials, soft aluminum and other suitable materials |

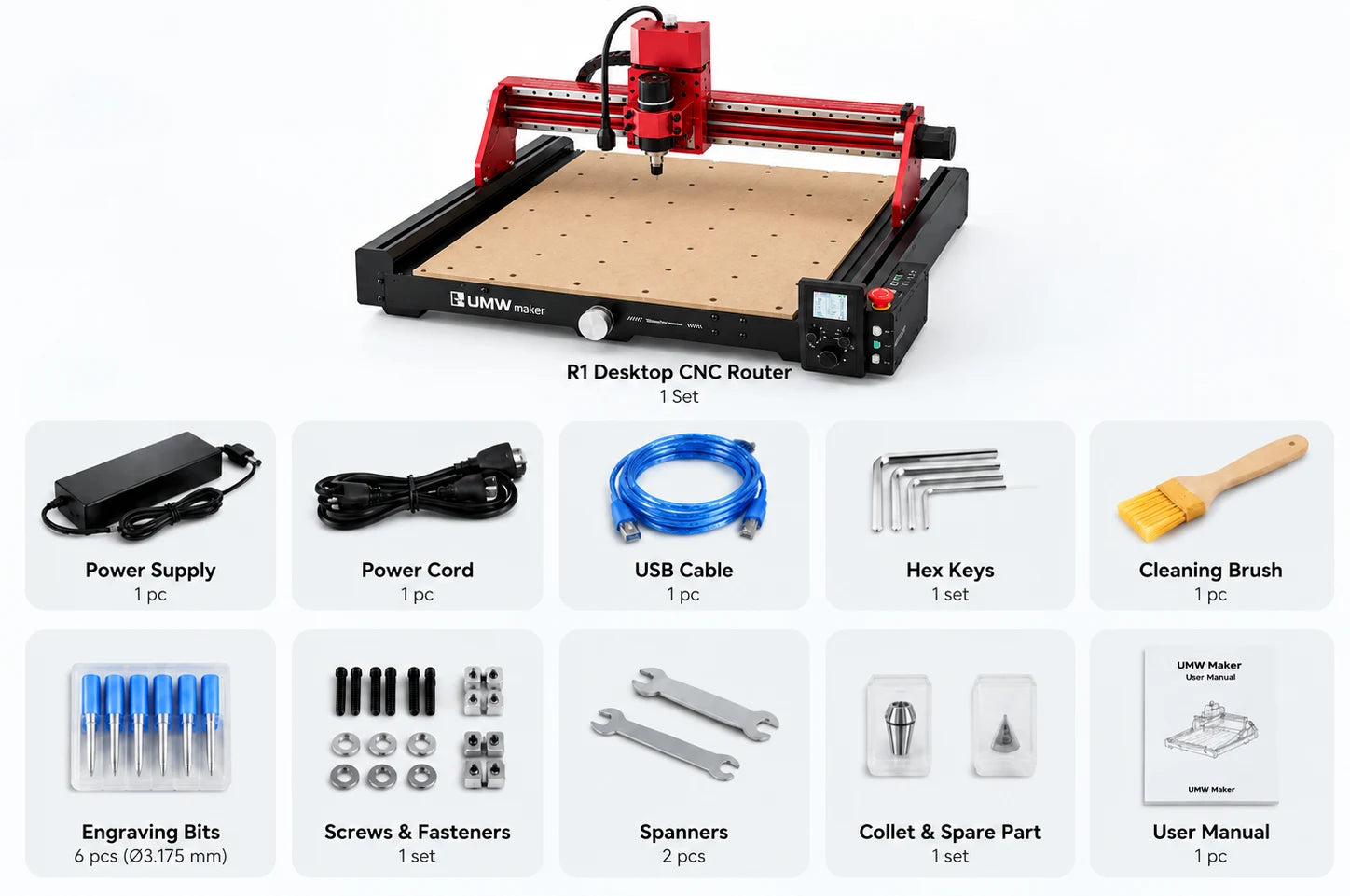

What's in the Box?
Everything you need to get started
Expand Your R1 with Optional Accessories
Extensive range of accessories, with various optional add-ons available for customization

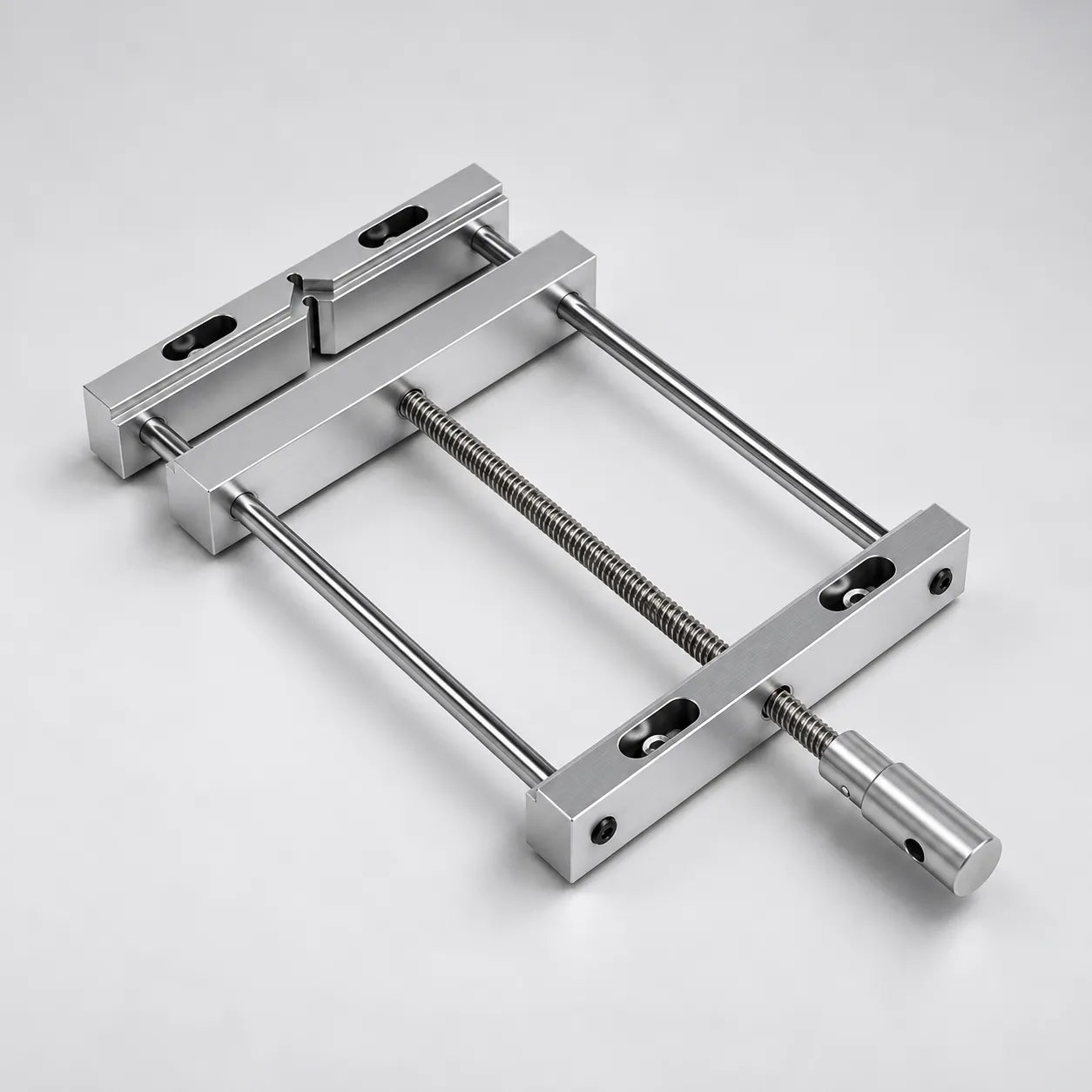

Fixture Kit

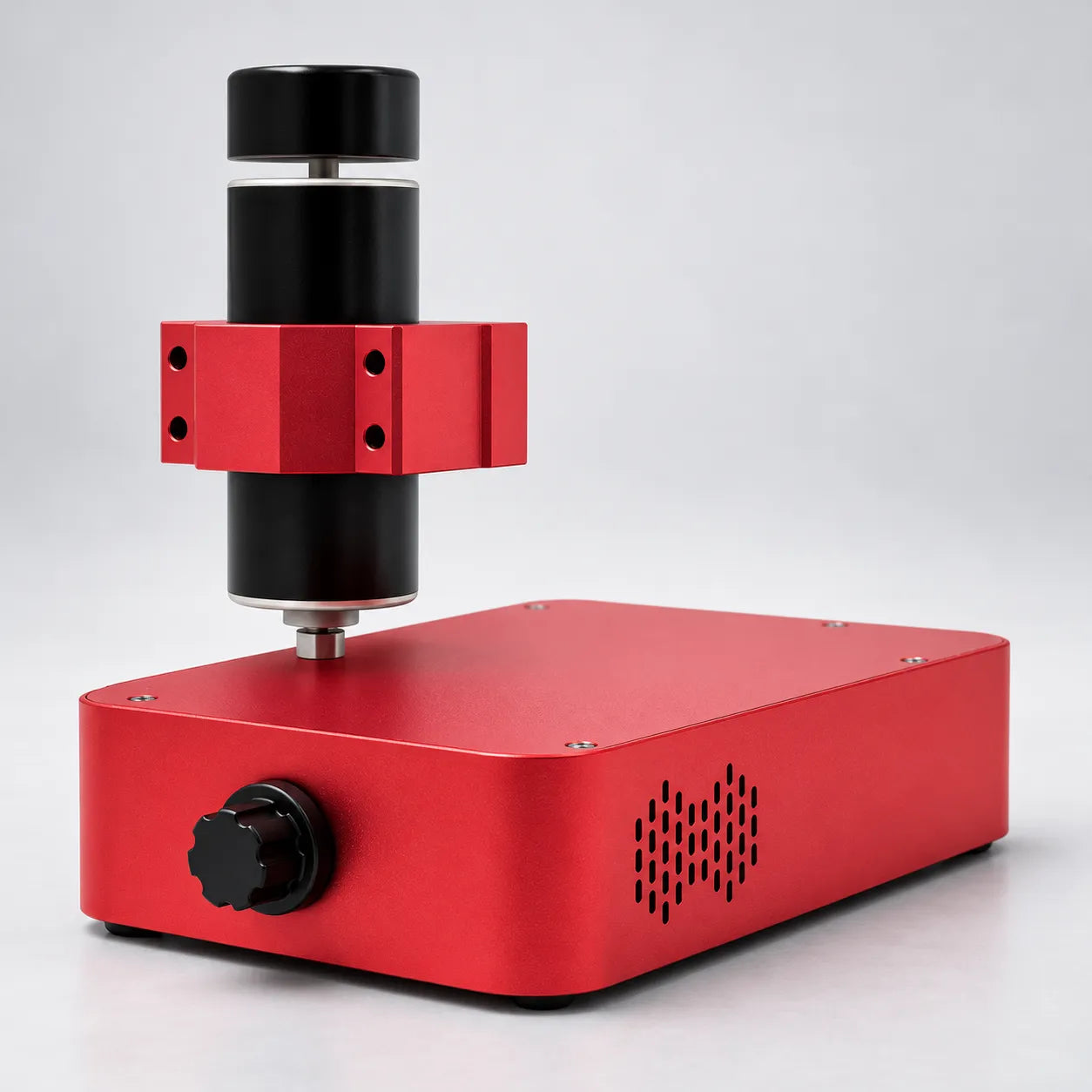

500W Spindle Upgrade Kit

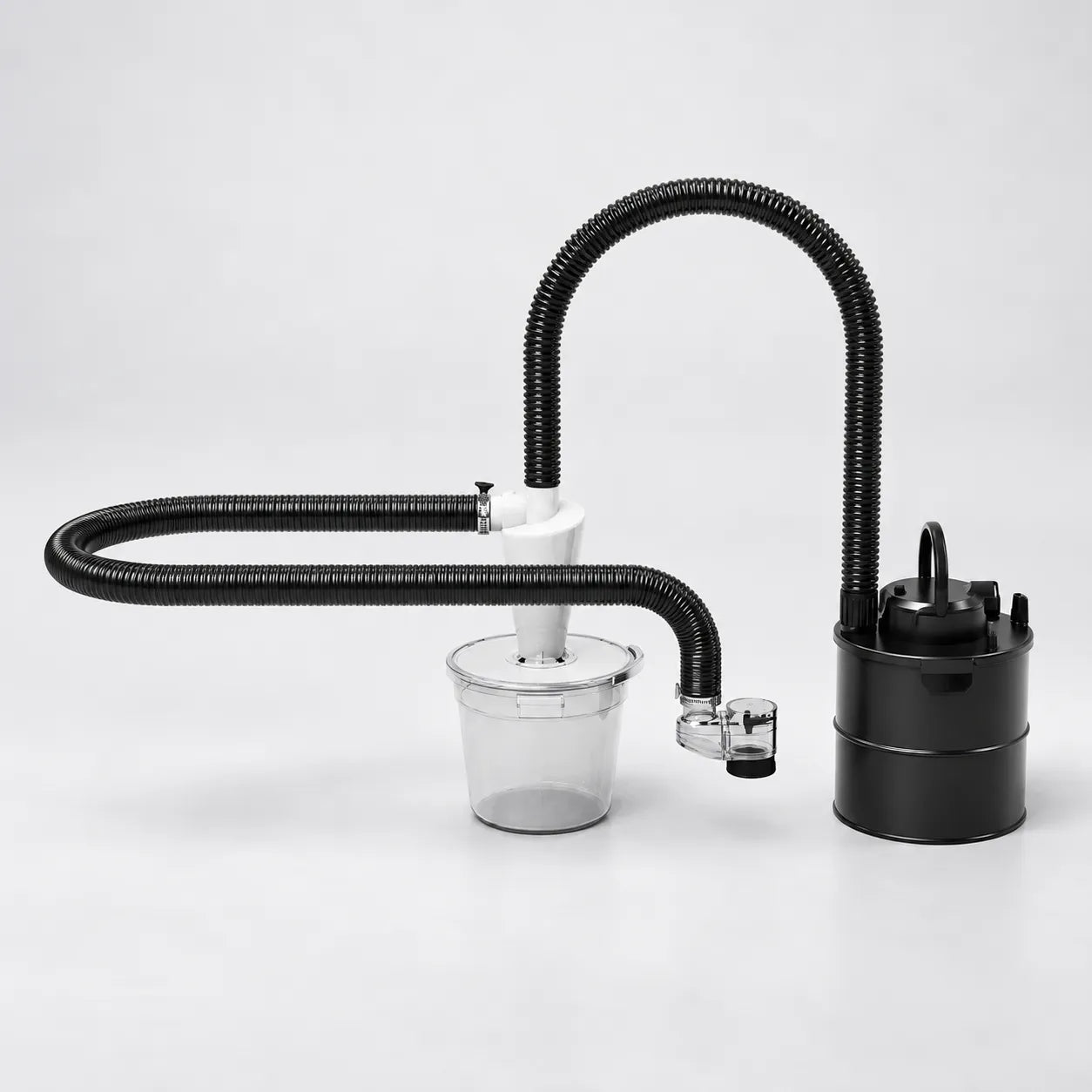

Dust Collector (220V)

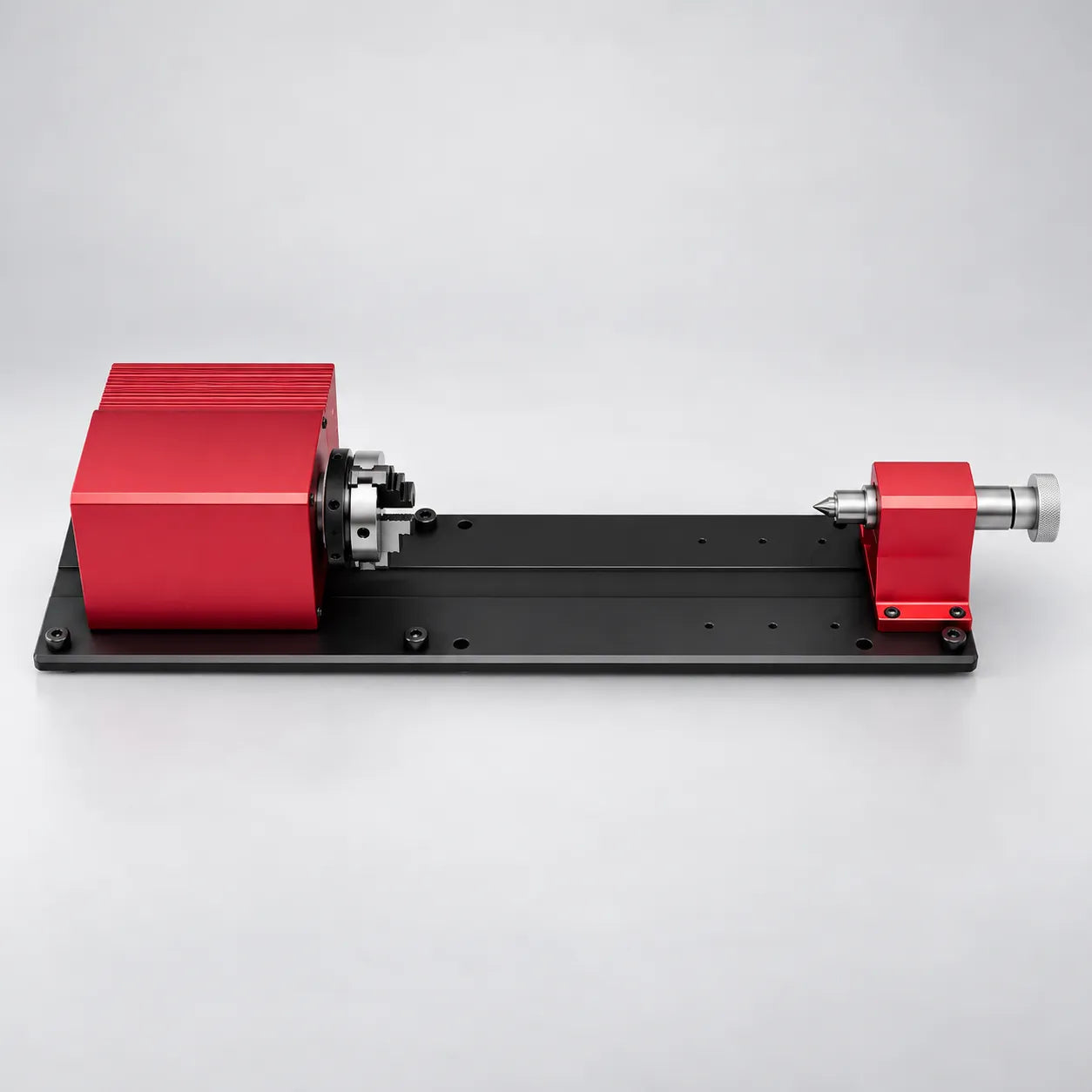

4th Axis Rotary Attachment
